DMU 270 P/FD

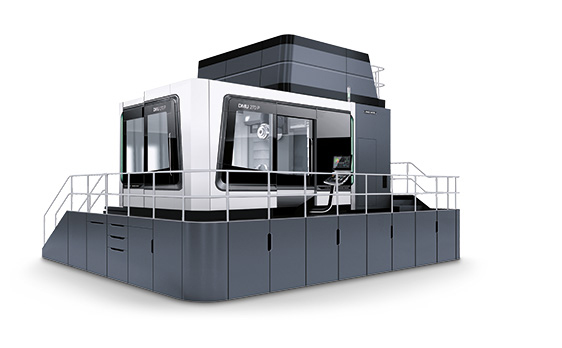

DMU 270 P

Bridge-type, 5-sided/5-axis Machine with High Accuracy and Dynamic Performance

The DMU portal series models are large, 5-sided/5-axis machines that employ a stable, bridge-type structure to achieve high accuracy and dynamic performance. The model enables 5-sided/5-axis machining with one setup, contributing to improvement of customers' productivity.
The DMU 270 P comes with a NC rotary table as standard and handles workpieces up to 12,000 kg.
The DMU 270 FD mounts the FD table equipped with the direct drive, achieving both milling and turning on one machine. The model comes with a φ2,200 mm FD table and handles workpieces up to 7,000 kg.

Videos

Grill Mold on DMU 210 P

Main Machine Specifications

	Travel X/Y/Z	Table size	Maximum table load	Maximum workpiece dimensions
DMU 270 P	2,700/2,700/1,600 mm	φ 2,200 mm	12,000 kg	φ3,400×1,960 mm, Portal 2,500 mm
DMU 270 FD	2,700/2,700/1,600 mm	φ 2,200 mm	7,000 kg	φ3,400×1,960 mm, Portal 2,500 mm

	Travel X/Y/Z	Table size	Maximum table load	Maximum workpiece dimensions
DMU 270 P	2,700/2,700/1,600 mm	φ 2,200 mm	12,000 kg	φ3,400×1,960 mm, Portal 2,500 mm
DMU 270 FD	2,700/2,700/1,600 mm	φ 2,200 mm	7,000 kg	φ3,400×1,960 mm, Portal 2,500 mm

†Catalog values may differ depending on options and peripherals to be installed.
