5-axis / Multi-axis Machines：5-axis Machining Centers：NMV

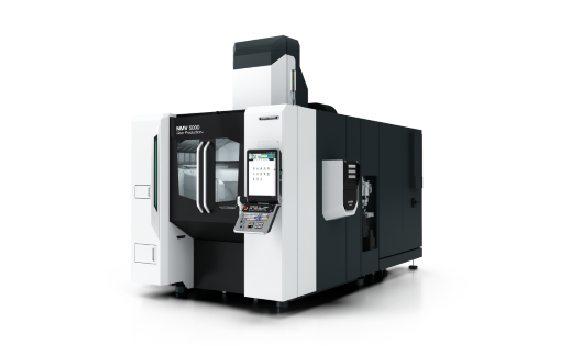

Gear Production⁺ by NMV 5000 DCG

Process integration of gear machining on 5-axis machines

we have developed a gear grinding unit and installed it on our 5-axis vertical machining center NMV 5000 DCG. When combined with Technology Cycles (e.g. gearSKIVING), this allows for a variety of processes from turning and milling to gear roughing and finishing of external gears up to φ400 mm and internal gears up to φ120-430 mm, 2-6 mm gear modules, and various shapes including splines and keys.

Digital Twin Showroom

Videos

Process integration of gear machining「Gear Production⁺ by NMV 5000 DCG」

Contact
