Cutting-edge High-speed and High-precision Machining beyond Imagination

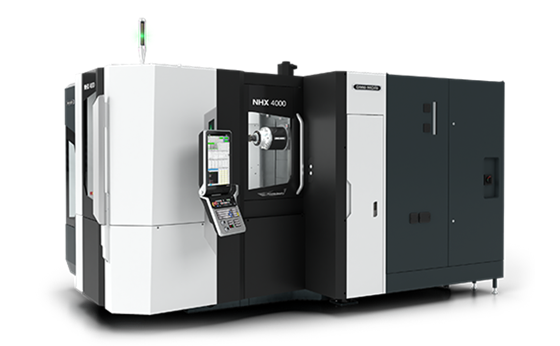

The NHX 4000 4th Generation is standard horizontal machining centers enabling high-efficiency, continuous machining and mass production machining in various areas such as the automotive and other mechanical fields. Both models are equipped with our latest spindle, the speedMASTER, ensuring high-speed and stable high-precision machining with the thick, high-rigidity bed.

Main Machine Specifications

*Scroll to see more.

  Max. workpiece height Max. workpiece swing diameter X/Y/Z axis travel Max. spindle speed Pallet working surface Pallet loading capacity
NHX 4000 4th Generation
900 mm*1 · 880 mm*2 Φ630 mm 560 mm/560 mm/660 mm 20,000 min-1
15,000 min-1 (high torque)
30,000 min-1 (high speed)
400 mm × 400 mm 400 kg

*1 Tap pallet

*2 T-slot pallet

※The actual values may differ from those specified in the catalogue, depending on the optional features and peripheral equipment.
