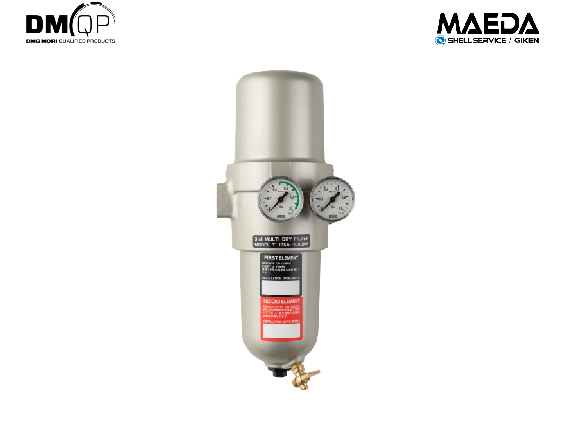

3in1 Multi Dry Filter
High-performance oil mist removal filter to prevent machine tool downtime caused by compressed air contaminants.
Are you experiencing issues with water, oil, or oil mist in your compressed air system?
The 3in1 Multi Dry Filter is a high-performance solution that delivers clean air, completely free of water droplets, oil droplets, and oil mist.
*Please contact our sales team for details.
*Manufacturer: MAEDA SHELL SERVICE(Japan)
Features
1. Unique 3-Stage Filtration with High-Performance Elements
Equipped with three distinct elements arranged coaxially to ensure zero water droplets and 99.99% oil mist removal. This multi-stage process effectively separates oil and moisture while capturing solid particles of 0.01μｍ or larger, transforming compressed air into ultra-clean air.
2. Energy-Saving Eco-Filter
The oil mist element features a unique structure that draws air from the outside in. This design significantly reduces pressure loss, extends the lifespan of the elements, and ensures the complete removal of fine particles.
3. Quick 20-Second Element Replacement
Designed with a simple screw-in structure, the filter elements can be replaced easily in just 20 seconds without the need for any tools.
Specifications
| Working pressure | 0.3～0.97 MPa |
|---|---|
| Operating temperature range | 5～60 ℃ |
| Removal of solid particles | 0.01 μm |
| Secondary side oil concentration | ＜ 0.01 mg/㎥ |
| Max. flow rate ℓ/min (ANR) for 0.7MPa | 750 ℓ/min |
| Connection port | 3/8 |
