- Machining examples 2021/10/04 UP
-

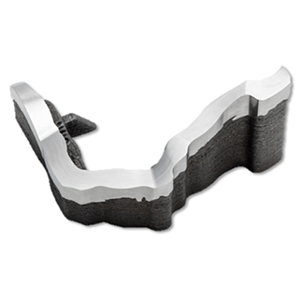

Scrap cutter: Dissimilar material coating using AM technology
- [Machining method]
- Advanced machining technology：Additive Manufacturing (AM Technology) ｜ Milling：Other Milling
- [Industry/Workpiece]
- Industrial machinery：Other Industrial machinery
Point
• Hard cutting edge on cost-efficient base material formed through dissimilar material additive manufacturing
• Hybrid machine allows for a single machine to switch between additive manufacturing and cutting
• Cutting edge hardness of 830 HV without heat treatment
Workpiece
| Industry（large group） | Industrial machinery |
|---|---|
| Material name | Base material: Tool steel; Coating material: High-speed tool steel |
| Material dimension | 193 mm x 124 mm x 78 mm |
| Machining time | Additive manufacturing (base material): 260 min.; Additive manufacturing (coating): 155 min.; Cutting: 60 min. |
Machine
| Machine model | LASERTEC 65 DED hybrid |
|---|
