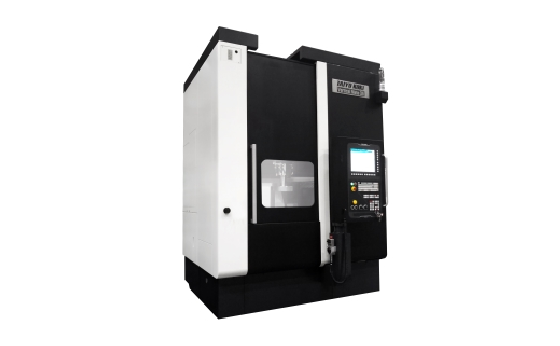

Vertical Mate 35

General-purpose model with excellent cost-performance

Vertical Mate 35 is a Vertical Multi-process Grinding Machine which is a general-purpose model, yet achieving high accuracy equivalent to conventional models.
This model is applicable for small/middle-size workpiece up to max loading weight 200kg(440lb), work spindle swing ø350mm(13.7in). The 2-position turret and ATC with 4 standard quills enable multi-process grinding of ID, OD and face.
User-friendly operation panel is equipped with conversational programming software "GriPS Ⅲ" as standard.
