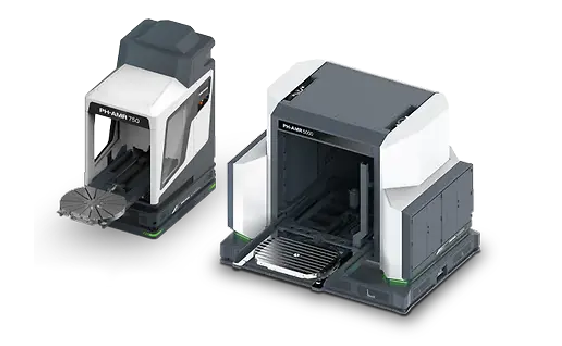

Pallet handling with driverless vision

The PH-AMR series is an important innovation for the digital factory of the future. It enables fully automated loading and unloading of machine or zero-point pallets into machine tools. It is the beginning of a new era of flexible automation solutions in intralogistics. Depending on the workpiece or pallet size requirements, various PH-AMR sizes are available for autonomous and collaborative pallet transport.

Main specifications of the PH-AMR series

  Max. transfer weight Pallet sizes Max. workpiece dimensions AMR dimensions
PH-AMR 750
750 kg 500 × 500 mm
630 × 630 mm
φ630 mm
φ800 × 630 mm
800 × 800 × 800 mm
φ900 × 800 mm
1,480 × 990 × 1,810 mm
PH-AMR 1500
1,500 kg 950 × 950 × 1,350 mm 2,600 × 2,000 × 2,930 mm
PH-AMR 3000
3,000 kg 800 × 800 mm
1,000 × 800 mm
φ1,100 mm
φ900 × 800 mm
1,250 × 1,250 × 1,350 mm 3,110 × 2,160 × 3,200 mm
PH-AMR 5000
5,000 kg 1,250 × 1,000 mm
φ1,400 mm
φ1,600 × 1,250 mm
1,600 × 1,600 × 1,350 mm 3,700 × 2,660 × 3,200 mm

 ※Depending on the machine tool.
