Systems：Pallet handling

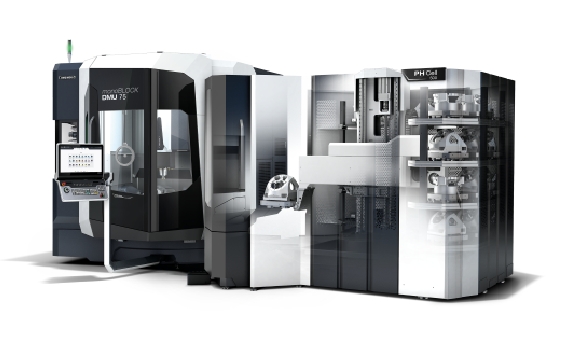

PH Cell

Modular automation systems for individual requirements

In Focus of the compact PH Cell automation solutions from DMG MORI are TOP ergonomics, its flexibility, its modularity and its retrofittability. Due to the side loading accessibility and insight into the machine is ideal. The PH Cell is a flexible automation and can be connected to a large number to various machines. Its modularity allows the customer to choose the pallet size and to select the palette type and the number of palette storage places. In addition, the PH Cell can be installed later.
The extensive line-up includes the PH Cell 300 for up to 40 pallets, the PH Cell 2000 with high-speed double gripper forks for simultaneous transport of two pallets.

Digital Twin Showroom

Main specification

*Scroll to see more.

	Maximum transfer weight	Maximum number of pallets in system	Clamping system	Nullpunkt - Spannsystem	Paletten
PH Cell 300	300 kg	40 pallets	Put on zero point clamping station	Erowa Schunk Zimmer	320 × 320 mm, 345 × 345 mm, 400 × 400 mm, 500 × 500 mm, φ400 mm, φ500 mm
PH Cell 500	500 kg	32 pallets	Integrated clamping cones into the machine table	―	400 × 400 mm, 500 × 500 mm
PH Cell 800	800 kg	30 pallets			400 × 400 mm, 500 × 500 mm, 630 × 630 mm, φ630 mm, φ800 × 630 mm
PH Cell 2000	2,000 kg	21 pallets			630 × 630 mm, 800 × 630 mm, 800 × 800 mm, 1,000 × 800 mm, φ900 × 800 mm, φ1,080 mm
