CELOS DYNAMICpost
Reliable software bridge between CAM and machines
Optimized program creation with CELOS DYNAMICpost
Post processor, NC simulation, and cutting force optimization functions in one software
CELOS DYNAMICpost is computer software that integrates three functions: a post processor, machining simulation, and cutting force optimization*1. After converting a CAD/CAM-designed toolpath to an NC program on the post processor, the cutting simulation function uses DMG MORI digital twin technology to evaluate the machining shape, performs an interference check, and then estimates machining time. The cutting force optimization function evaluates the cutting load, and automatically generates an NC program with optimized machining conditions.
Main benefits
CELOS DYNAMICpost provides post processor, machining simulation, and cutting force optimization functions*1 in one software
Its unified user interface delivers seamless data coordination. DMG MORI provides one-stop maintenance support. Without the need to test each piece of software, equipment can be used immediately after delivery.
Maximizes the potential of your machine tools
The dedicated post processor can be used to generate DMG MORI machine tool-compliant NC programs.
＋ Compatible with dedicated functions (Application Tuning, Quick M code)
- Application Tuning: Dramatically reduces rough machining time and improves accuracy
＋ Supports auto input to reduce operator input tasks
Safer machining and more accurate production plans

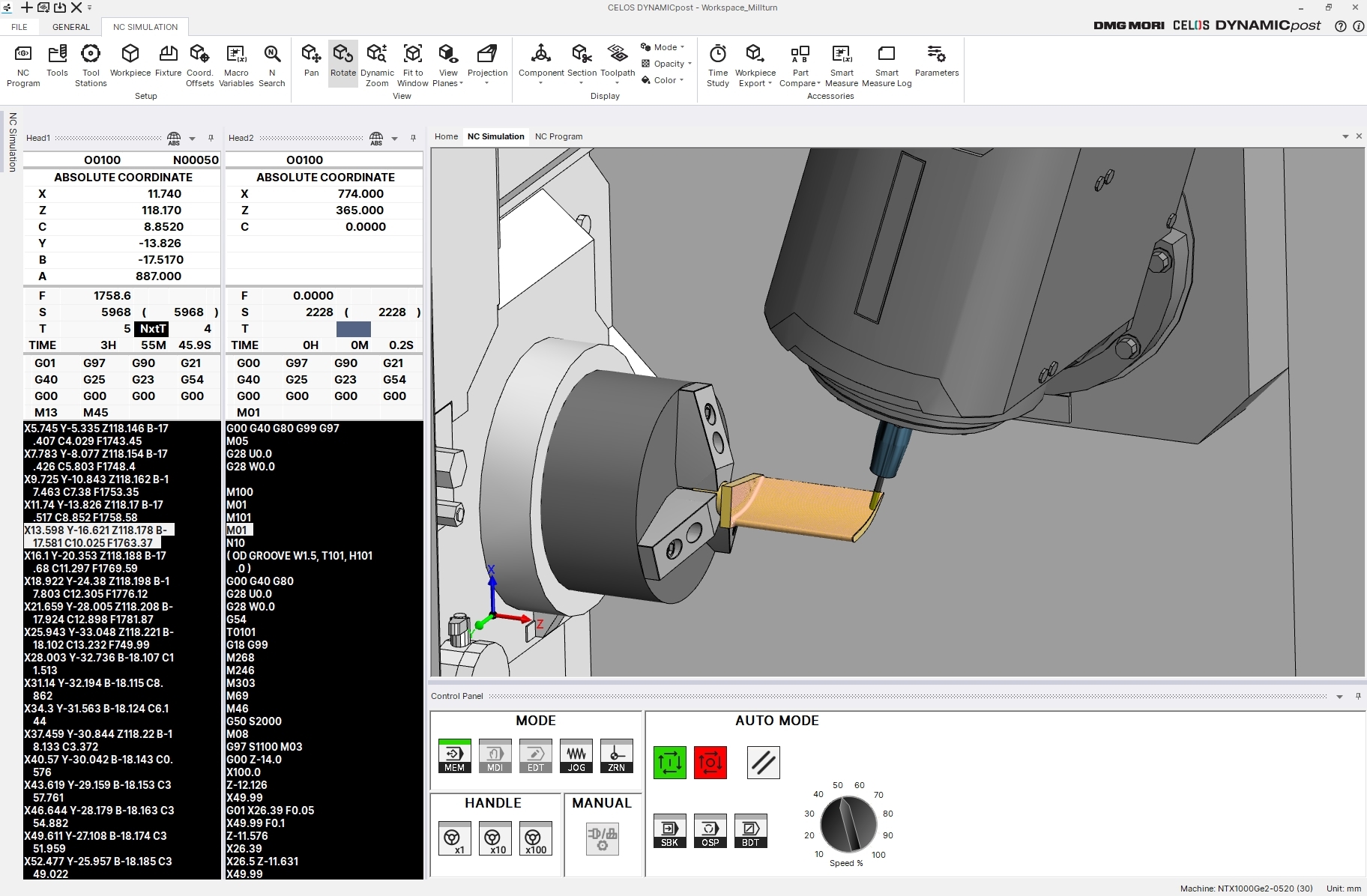

CELOS DYNAMICpost allows you to run accurate NC program cutting simulations.
＋ A time study function used to perform accurate cycle time prediction (within a 10% margin of accuracy)
＋ The interference check function prevents machining interference, for safer machining
＋ In addition to CAM-designed programs, it is also compatible with program simulations written using the MAPPS conversational programming function＊3
Time study function
Comparisons of CAD-designed 3D models and simulated cutting shapes
Reduces cutting time and curbs tool damage
The cutting force optimization function*1 provides optimal control over machining conditions.
＋ By providing optimal control over machining conditions, reduces rough cutting time by 20%*2 and curbing tool damage
＋ Cutting force simulation results can be viewed in a graph
- Check high cutting load areas that lead to tool damage in advance
Simulation monitor
Cutting force optimization
Supported CAMs
|
Mastercam (2021 or later), Siemens NX (1926 or later)
One of the CAM software packages listed above is required in order to use the post processor and cutting force optimization functions of this software.
The simulation function can be used even without the CAM software listed above. |
|---|
System Requirement(Recommended operating environment)
| OS | Windows10 64-bit professional |
|---|---|
| CPU | 2.0 GHz or higher Intel / AMD 64-bit processor <3.0 GHz or higher Intel i7 / Xeon W series> |
| RAM | 8 GB or more <16 GB or more> |
| Available space | 2 GB or more of available hard drive space <10 GB or more of available hard drive space> |
| Video | Integrated graphics |
| Monitor | Resolution: 1,920 × 1,080 or higher |
| Other | Ethernet adapter, DVD-ROM drive |
| OS | Windows10 64-bit professional |
|---|---|
| CPU | 2.0 GHz or higher Intel / AMD 64-bit processor <3.0 GHz or higher Intel i7 / Xeon E3> |
| RAM | 8 GB or more <16 GB or more> |
| Available space | 2 GB or more of available hard drive space <10 GB or more of available hard drive space> |
| Video | Integrated graphics |
| Monitor | Resolution: 1,920 × 1,080 or higher |
| Other | Ethernet adapter, DVD-ROM drive |
※Optimization Edition requires NVIDIA Quadro with at least 8GB RAM.
＊1 Only included on the Optimization Edition.
＊2 The results described above may not be achieved depending on differences in machining types.
＊3 SIEMENS conversational program ShopMILL and ShopTURN are not supported.
