Technology Cycles：Measuring Cycles

VCS Complete

Automatic correction of spatial errors in the machining area

VCS Complete is a technology cycle that measures geometric tolerances on machine tools and automatically compensates for spatial errors in the machining area.

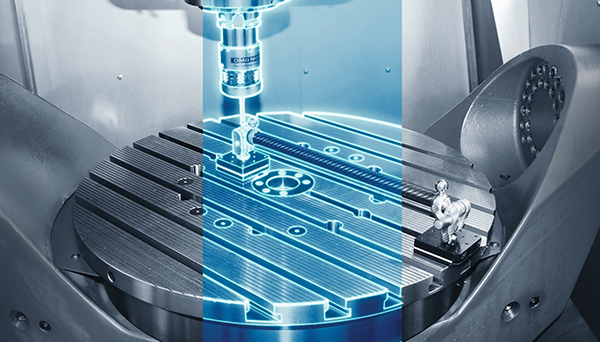

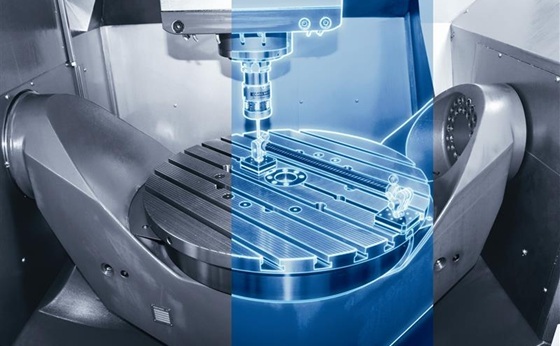

The measurement is performed using a toolkit consisting of two measuring spheres connected by a special carbon fiber, which automatically determines an algorithm to compensate for spatial positional errors and compensate in the machining area with µm-level accuracy.

Main Applicable models

DMU / DMC monoBLOCK series

Unique selling points

1. Measures geometric tolerances of machine tools and automatically compensates for spatial errors in the machining area

2. Quick and easy correction by following the guidance

3. Periodic correction of pitch error, angular error, straightness, etc

4. Data recording function allows recording and analysis of measurement results

5. Errors caused by wear and interference are also compensated

6. Quick check function for easy-to-understand display of measurement results

Measured value and comparison measurement
Displays measured values for each indexing position on the A/C axis
Color discrimination of measurement results Green → Yellow → Red
