Technology Cycles:Shaping Cycles

Keyway Broaching


Process integration of keyway machining on a single universal machine

Keyway broaching is a technology cycle that enables keyway processing on universal machines. Conventional keyway processing requires process division using universal and dedicated machines, but by introducing keyway broaching, process consolidation of production can be achieved.

Main Applicable models

  • NTX series
  • NZX series
  • NLX series
  • ALX series

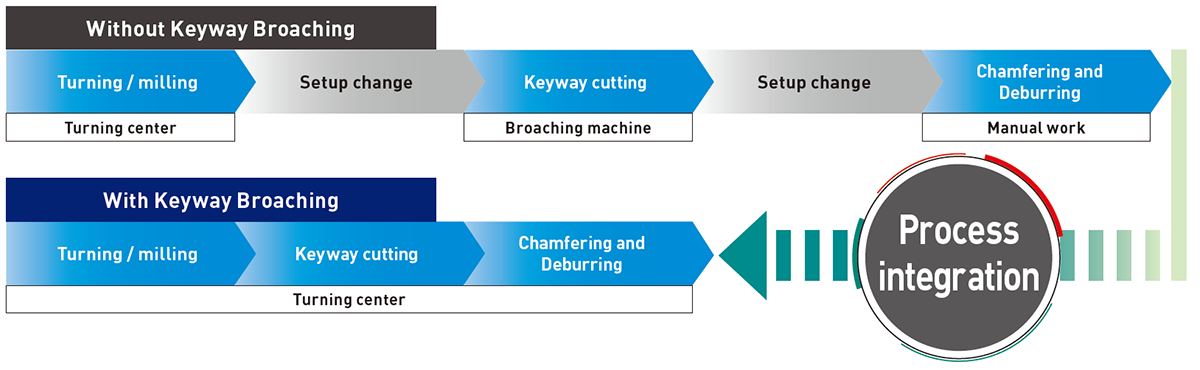

Process integration for efficient production

Unique selling points

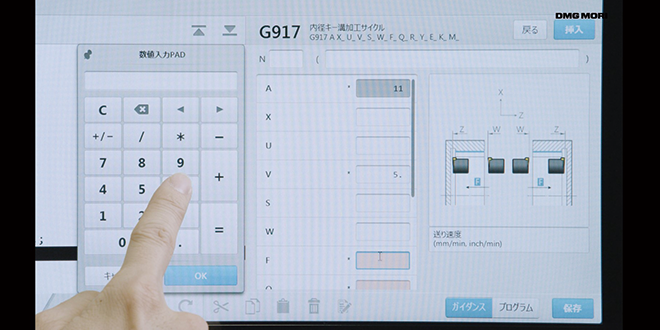

1.Smooth and interactive program creation

  • Guidance screen for easy input of machining conditions and tool information
  • Quick program creation that requires no special knowledge

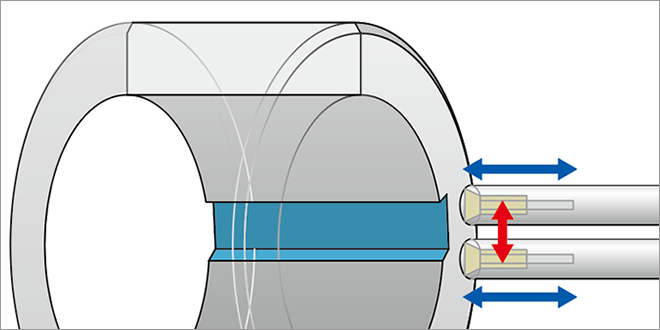

2.Tool shift in the direction of keyway width

  • Capable of cutting a keyway wider than the tool width by a single tool
  • No need for extra tools based on keyway size
  • DMG MORI also provides tools as DMQP in one package
  • * Y-axis specification is required.
  • DMQP: DMG MORI Qualified Products

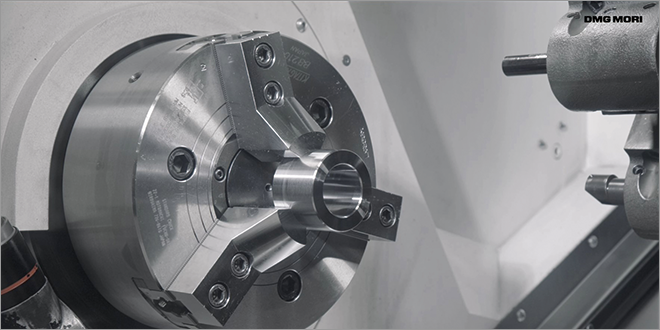

3.Highly efficient production in one chucking

  • Utilizes high-accuracy C-axis indexing
  • No phase matching of keyways by workpiece loading / unloading necessary
  • Process integration that contributes to automation

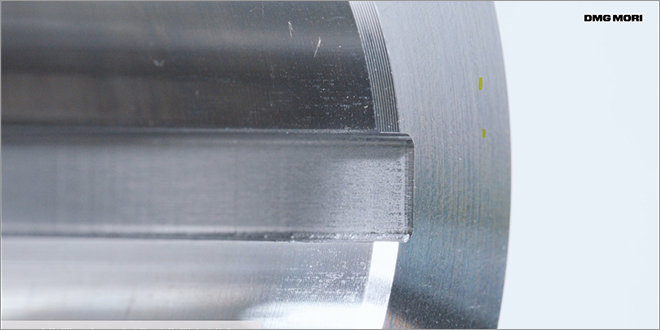

4.Automized chamfering after keyway machining

  • Chamfering performed by tilting the C-axis of the spindle
  • Chamfering possible with the same tools, no special tools required
  • Reduces manual deburring time
