Turning Centers:Turning Centers:NLX

NLX 4000

Share

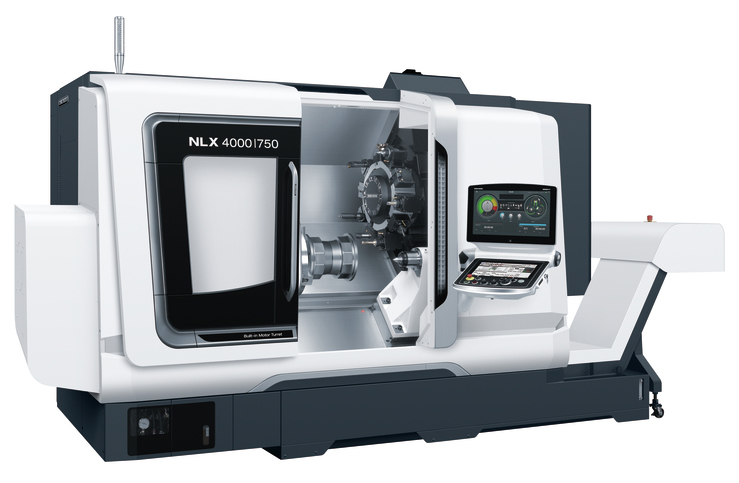

NLX 4000 | 750

Large Lathe for Sophisticated and Dynamic Parts Machining

The NLX 4000 is a large lathe, which meets the needs of the era where multi-characteristics are demanded. The model is capable of performing from heavy-duty cutting with its high torque power to machining of fine parts requiring high precision.
So a combination of turning and powerful milling as well as turning, the basic function of a lathe, is ideal for parts machining in a wide array of industries.

Main Machine Specifications

*Scroll to see more.

  Max. turning length Max. turning diameter Bar work capacity Max. spindle speed Max. rotary tool spindle speed
NLX 4000 | 750
700 / 746 / 675 / 721 mm Φ 380 / 383 / 311 / 313 mm Φ 117 mm 2,000 mm-1 10,000 mm-1
NLX 4000 | 1500
1,538 / 1,584 / 1,506 / 1,552mm Φ 380 / 383 / 311 / 313 mm Φ 117 mm 2,000 mm-1 10,000 mm-1

※The actual values may differ from those specified in the catalogue, depending on the optional features and peripheral equipment.
