Machining：Chuck / Steady rest

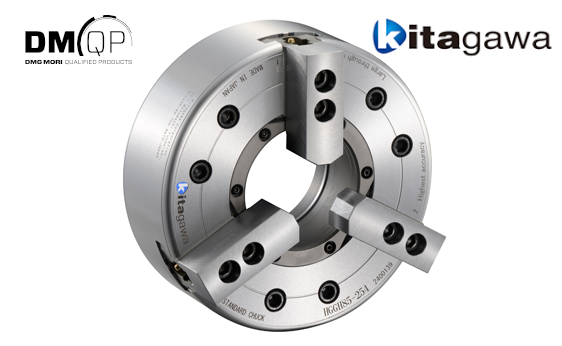

10-inch power chuck with large through hole
The highest through hole diameter for a 10-inch chuck
NLX 2500 2nd Generation features a large through hole spindle that can be utilized to the maximum extent on both axes. It is ideal for large-diameter rod material workpieces, to integrate and automate processes and improve productivity.
*Please contact our sales team for details.
*Manufacturer: Kitagawa Corporation (Japan)
Features
1. Through hole diameter ⌀106 mm
This 10-inch chuck has a through hole of the same diameter of a conventional 12-inch chuck.

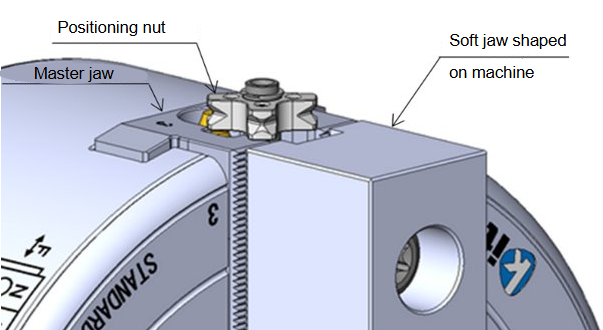

2. Use the optional Tnut-Plus for quicker setup
Tnut-Plus eliminates the need to reshape the jaw. The gripping accuracy after shaping is retained, even after attaching or removing the jaw.
3. Excellent versatility
Capable of machining bar material up to ⌀105 mm, it can help to integrate processes for high-mix machining.
4. Can be upgraded to a quick jaw change chuck
Use the BR-AJC08M option to ensure proper serration position attachment and reduce setup time.
