Loading：Bar feeder

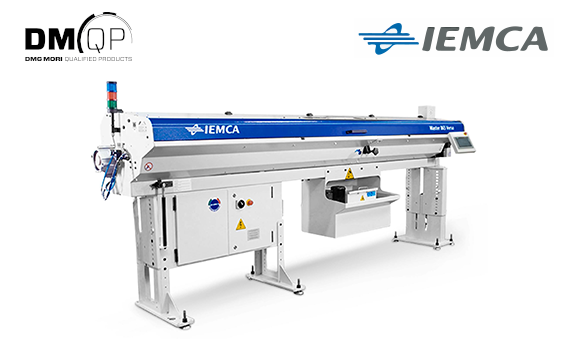

MASTER 880

General-purpose bar feeders for large and long materials

Compared with conventional short feeders, Master Series products can be used to resolve issues such as strain on the machine caused by remaining material dropping forward, large amounts of remaining material, or excessive time and labor spent on refilling bar material.

*Please contact our sales team for information on availability.
*Manufacturer: IEMCA (Italy)

Special DMQP site

Main features

1. Adjusts to the optimal cutting speed

The anti-vibration device holds the bar material from all directions, suppressing vibration during machining. The high-rigidity structure significantly absorbs vibration even when rotating bar material that is difficult to keep straight. This reduces vibration that can damage the spindle of the machine, helping to improve the overall durability of the equipment.

2. General-purpose properties and vibration damping performance

The guide channel setup can be switched to support various bar material diameters, providing both vibration damping performance and general-purpose properties. In addition to the benefits of the sealed structure of the guide channel, it is made from material with superior vibration absorption performance and delivers sufficient vibration damping performance even when machining square material that tends to vibrate, helping to finish highly precise products.

3. Easily ensures sufficient workspace with machines

The axis movement device allows the upper half of the bar feeder to slide 800 mm to the rear without requiring the use of any tools, ensuring sufficient space to replace parts and perform maintenance on the machine, and decreasing work times while also reducing time spent on moving the bar feeder.

4. New touchscreen

The 7-inch touchscreen supports Japanese text and is equipped with special functions including support for Industry 4.0, allowing for simple and intuitive operation.

Extended unsupervised operation

MASTER products can be equipped with a 2.5-ton capacity bundle magazine for extended unsupervised operation during mass production, minimizing internal logistics costs. Loading bar material requires a lift truck, pallet jack, or ceiling crane.

Product specifications

*Scroll to see more.

	Round materials	Hexagonal materials	Square materials	Material lengths	Material capacity
MASTER 865	Φ8-65 mm (*Φ61)	HEX 7-55 mm (*52)	10-43 mm	2.1 m/3.3 m/3.8 m/4.3 m	Standard material shelf Load width:310 mm
MASTER 880	Φ8-80 mm (*Φ75)	HEX 7-65 mm	10-50 mm	2.1 m/3.3 m/3.8 m/4.3 m	Standard material shelf Load width:310 mm
MASTER 880 (Bundle specification)	Φ8*-80 mm (Φ75)	HEX 7**-65 mm	10**-50 mm	3.3 m/3.8 m/4.3 m/6.3 m	Bundle magazine Up to 2.5 tons

*Numbers in parentheses are the re-clamp diameter. The maximum re-clamp diameter of bar material may vary depending on the bar material work capacity of the machine.
**Numbers assume the use of 3-meter iron material. Note that the minimum bar material diameter will vary depending on the material or bar material length.
