Loading：Bar feeder

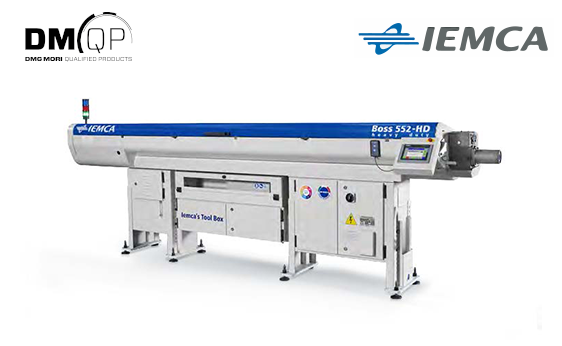

BOSS 552 HD
High-performance bar feeders with industry-leading vibration damping performance
The Boss Series, IEMCA's longtime best-selling product lineup, is equipped with features such as control through a high-performance servo system and versatile storage magazines, and improves bar material machining productivity through the use of superior vibration damping performance.
*Please contact our sales team for information on availability.
*Manufacturer: IEMCA (Italy)
Main features
1. High-rigidity structure
The thick steel beam in the center and a base designed for balance provide excellent rigidity.
2. Superior vibration damping performance
It features the IEMCA bar material guide system with a sealed structure and superior vibration absorption performance. The arc-shaped internal diameter and continuous structure create an almost completely sealed space (IEMCA patented) filled with high-viscosity oil. When the bar material is rotated, it generates a fluid bearing effect that reduces vibration and noise.
3. Extended unsupervised operation
BOSS Series products can use a multi-magazine (1,800 mm capacity), bundle magazine (max. 2 ton capacity), or open access bundle magazine with a maximum capacity of 2 tons ("OAB magazine" below). All material shelves have been designed in accordance with international ergonomic standards.
4. New touchscreen
The 7-inch touchscreen supports Japanese text and is equipped with special functions including support for Industry 4.0, allowing for simple and intuitive operation.
High-rigidity structure
BOSS incorporates a single thick steel beam in the center. The heavy-duty platform significantly improves the rigidity of the entire machine and absorbs at least 60% of the vibration of rotating bar material compared with conventional models even when feeding irregularly shaped material or difficult bar material, to support stable cutting.
Machining vibration is reduced, which can extend the life of the machine tool spindle.
BOSS 552 HD product specifications
*Scroll to see more.
| Round materials | Hexagonal materials | Square materials | Material lengths | Material capacity | |
|
|
Φ5-51 mm (*Φ47) | HEX5-43 mm (*40) | 5-36 mm (*33) | 2.1 m/3.2 m/3.7 m/4.4 m/6.4 m | Standard material shelf Shelf width: 280 mm |
|
|
Φ5**-51 mm (*Φ47) | HEX5**-43 mm (*40) | 5**-36 mm (*33) | 3.2 m/3.7 m/4.4 m/6.4 m | Multi-rack Width: 1800 mm |
|
|
Φ8**-51 mm (*Φ47) | HEX12**-43 mm (*40) | 12**-36 mm (*33) | 3.2 m/3.7 m/4.4 m/6.4 m | Bundle magazine Up to 2 tons |
|
|
Φ15**-51 mm (*Φ47) | HEX12**-43 mm (*40) | ー | 3.2 m/4.4 m | OAB magazine Up to 2 tons |
*Numbers in parentheses are the re-clamp diameter. The maximum re-clamp diameter of bar material may vary depending on the bar material work capacity of the machine.
**Numbers assume the use of 3-meter iron material. Note that the minimum bar material diameter will vary depending on the material or bar material length.
Multi-rack specification
Bundle magazine specification
OAB magazine specification
(Open access bundle magazine)
