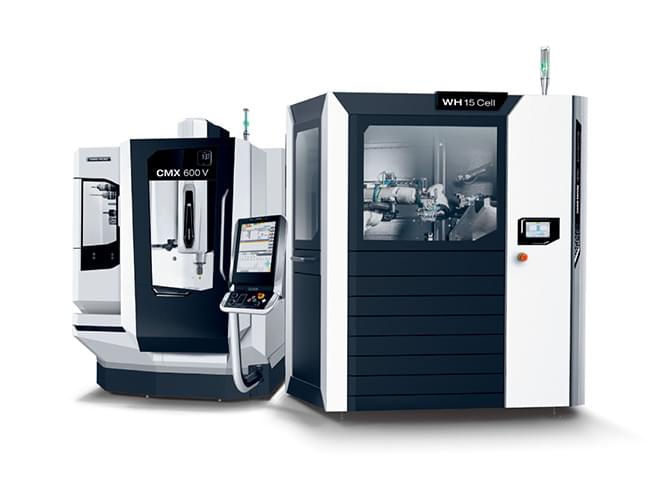

Workpiece handling systemWH CELL

Versatile work handling system with large work storage capacity

Versatile workpiece handling system with excellent flexibility and accessibility to a wide variety of machine types.
Industrial robots efficiently supply workpieces from workpiece storage.

Video

Highlights

  • Highly flexible workpiece handling system ideal for turning centers and machining centers
  • Capable of handling workpieces up to 300 mm (11.8 in.) long, 300 mm (11.8 in.) wide, 220 mm (8.6 in.) high, and 25 kg (55.0 lb.) mass
  • With various options including robots, grippers, workpiece transfer units and stockers, it offers the automation solution best suited for your machine and process chain.
  • Can be equipped with SPC station*, NG chute, air blow station, reversing device, etc. (optional)

* Workpiece eject station for quality check and measurement
SPC: Statistical Process Control

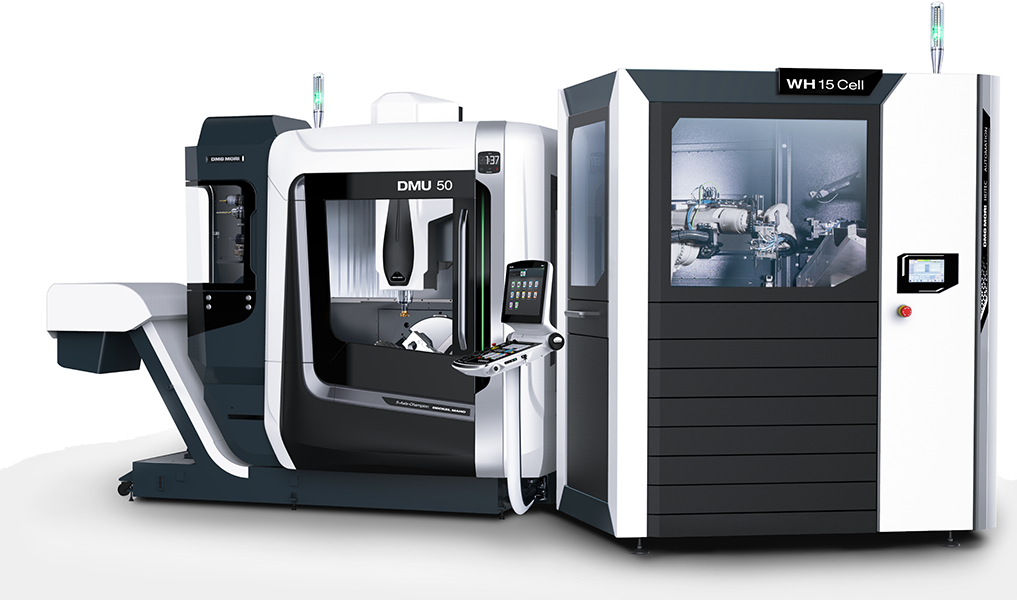

WH 15 CELL on DMU 50 3rd Genaration 5-axis machine

WH 3 CELL

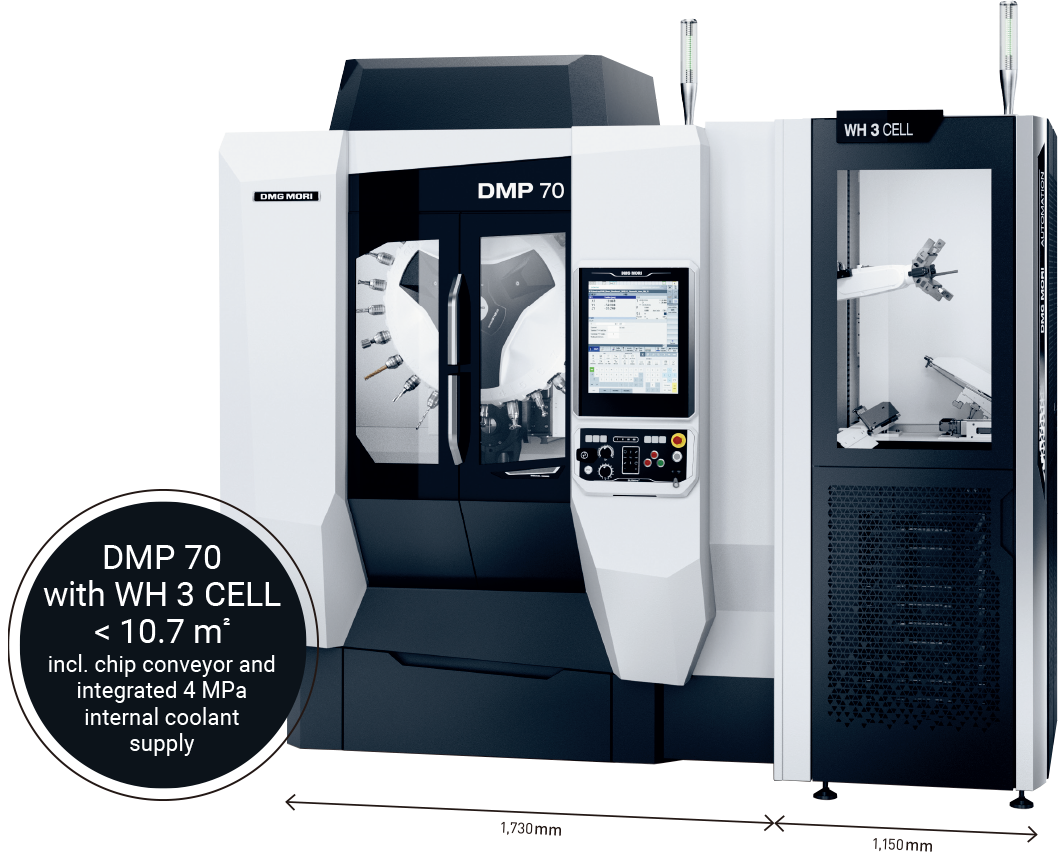

  • Work handling system dedicated to DMP 70
  • Recirculating magazine for workpieces up to 5.5 kg (12.1 lb.) <single gripper>, double gripper up to 3 kg (6.6 lb.)
  • Max. workpiece size 300 × 200 mm
    (11.8 × 7.9 in.)
  • Max. workpiece height 50 or 100 mm
    (2.0 or 3.9 in.) <carrier-dependent>
  • 8 or 15 workpiece carriers with
    515 × 315 mm (20.3 × 12.4 in.)
    effective surface and each
    with a 20 kg (44.0 lb.) load
    capacity

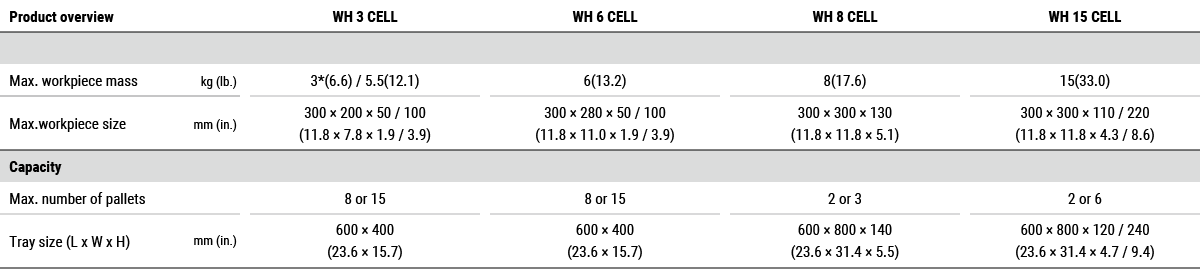

Specifications
