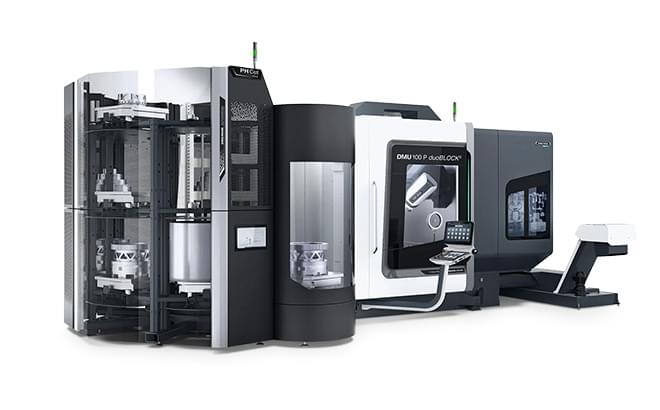

Pallet handling systemPH Cell 2000

Modular pallet handling system for transporting large workpieces
The PH Cell 2000 is a pallet storage system that carries up to 21 pallets and transports heavy workpieces weighing up to 2,000 kg (4,400 lb.).
Video

Highlights
- Up to 21 pallets can be stored in an installation area of 16.5 m2 (177.6 ft2)
- Pallet size 500 × 500 mm (19.7 × 19.7 in.) up to ø 1,100 mm (ø 43.3 in.)
- Realized pallet changing time of less than 45 seconds
- Modular design enables fast start-up of automated systems
- System can be controlled from the control panel of the machine itself

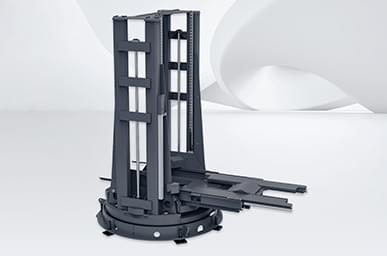

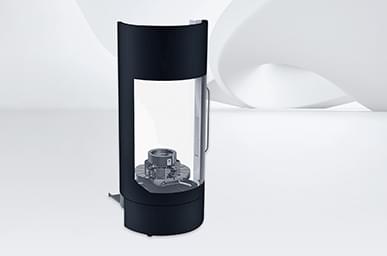

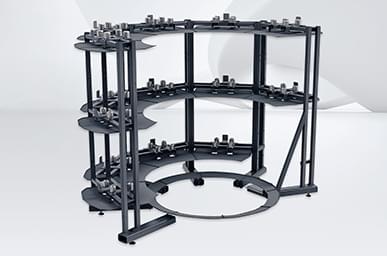

Handling device For pallets from 500 × 500 mm (19.7 × 19.7 in.) to ø 1,100 mm (ø 43.3 in.). Fast pallet change time < 45 seconds. Shelf storage for max. 21 pallets on 4 levels in the overall system. 2,000 kg (4,400 lb.) max. transfer weight. Rotary setup station as standard High precision mill-turn (FD) station and optional clamping hydraulics optionally.
Suitable models
- DMU / DMC H monoBLOCK Series
- DMU / DMC duoBLOCK Series
