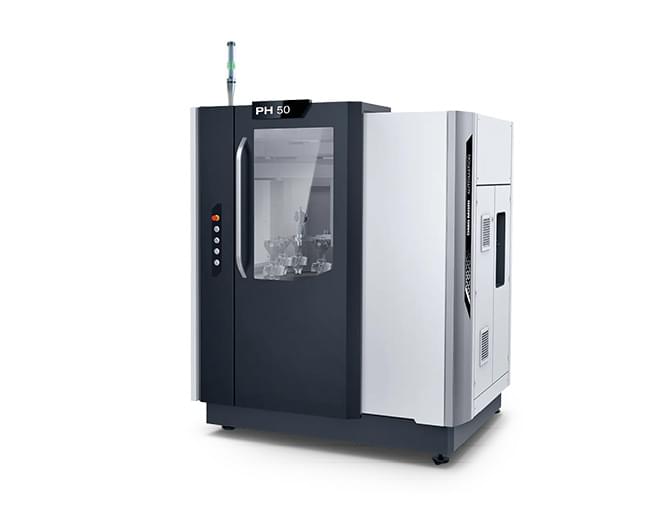

Pallet handling systemPH 50
Compact and cost-effective pallet handling system
The PH 50 is a space-saving pallet handling system that provides automation.
Highlights
- Most compact and cost effective pallet automation system from DMG MORI
- Small space requirement of only 2.7 m2 (29.1 ft2) <1.6 × 1.7 m (5.2 × 5.6 ft)>
- Flexible integration possible for a large number of DMG MORI machines
- System can be controlled from the control panel of the machine itself

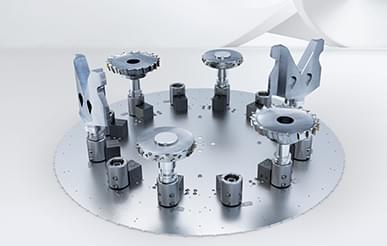

Up to 6 HSK-63 tools of max. ø 355 × 370 mm (ø 14.0 × 14.6 in.) and max. 30 kg (66 lb.) weight

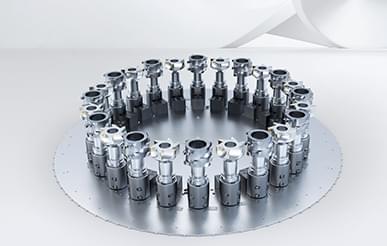

Up to 22 HSK-63 tools of max. ø 90 × 440 mm (ø 3.5 × 17.3 in.) and max. 30 kg (66 lb.) weight

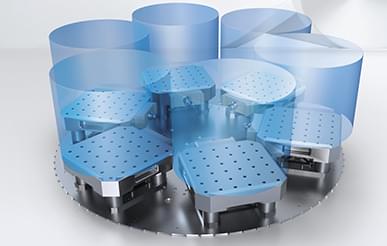

Up to 6 pcs. Schunk pallet <320 × 320 mm (12.6 × 12.6 in.)> with max. ø 400 × 323 mm (15.74 × 12.7 in.) and max. 70 kg (154 lb.) workpiece weight
Suitable models
- DMU 50 3rd Generation
- CMX V Series
- DMC V Series
- DMP 70
- ULTRASONIC 50
- LASERTEC 45 Shape
- LASERTEC 50 Precision tool
