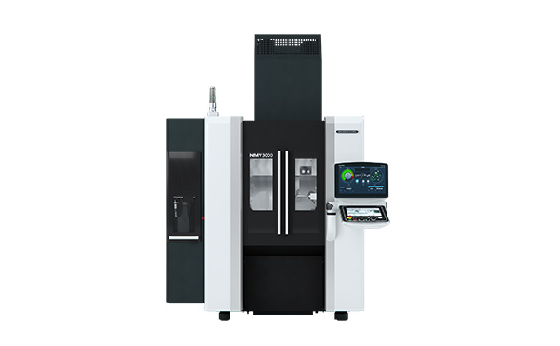

NMV 3000 DCG 2nd Generation
5-Axis Vertical Machining Center with Outstanding Productivity
NMV3000 DCG 2nd Generation achieves high-efficiency, high-precision machining of small and complex-shaped workpieces for the automotive and aircraft industries with the DMG MORI original technologies: the DCG (Driven at the Center of Gravity), DDM (Direct Drive Motor), ORC (Octagonal Ram Construction).
As an option, the system is compatible with automated systems, including the AWC (Automatic Workpiece Changer), pallet changers, the MATRIS robot system, and the CTS (Central Tool Storage), enabling small-batch, high-variety production as well as operations during nights and holidays, thereby improving machine utilisation rates.
Main Machine Specifications
*Scroll to see more.
| Max. workpiece height | Max. workpiece swing diameter | X / Y / Z-axis travel | Max. spindle speed | Table loading capacity | Tool storage capacity | |
|
|
300 mm | Φ350 mm | 500 mm 350 mm 510 mm |
20,000 min-1 (Standard) 30,000 min-1 (High-speed) |
100 kg | 21, 61, 91, 121, 181 tools（Chain-type） 160, 240, 300, 320 tools（Rack-type） |
※The actual values may differ from those specified in the catalogue, depending on the optional features and peripheral equipment.
