Robot systemRobo2Go Turning

Space saving robot system allows you to construct automation system quickly

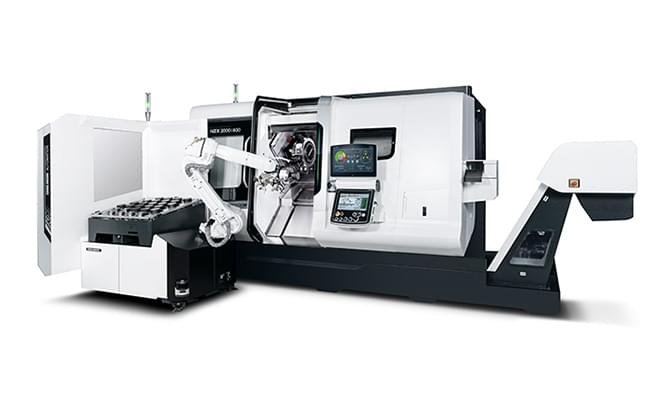

Robo2Go Turning is a robot system that automatically supplies and removes materials in combination with a turning center.
Since it is installed in front of the machine, it can be used flexibly by moving it to another machine depending on the application. The high-precision sensor system can recognize the workpieces, making it ideal for high-mix low-volume production.

Video

Highlights

One app for uniform control of all Robo2Go variants, setting up a new workpiece < 5 minutes
Robo2Go Turning, robot payload 12 (26.4), 25 (55) or 35 kg (77 lb.)
Rapid changeover from chuck to shaft parts
Robo2Go Vision can be mounted to recognize workpieces thanks to a highly accurate sensor system: Robot payload up to 35 kg (77 lb.)

Robo2Go Turning:
Automation system for turning machines

Flexible workpiece handling for payloads up to 35 kg (77 lb.)

Three models to meet different needs: 12 kg (26.4 lb.) / 25 kg (55 lb.) / 35 kg (77 lb.) robot payload
Suitable for handling shaft workpieces <ø 20 to 170 mm (ø 0.8 to 6.7 in.)> and chuck workpieces <ø 20 to 175 mm (ø 0.8 to 6.9 in.)>
External and internal gripping

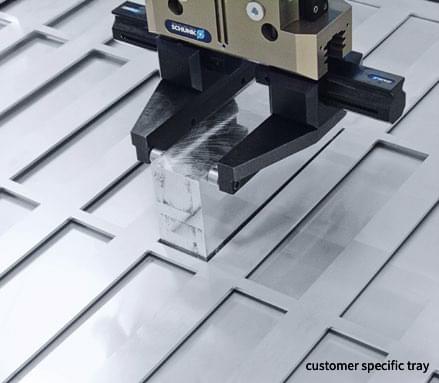

Customizable work trays
Workpieces can be stacked
Can be combined with bar feeder

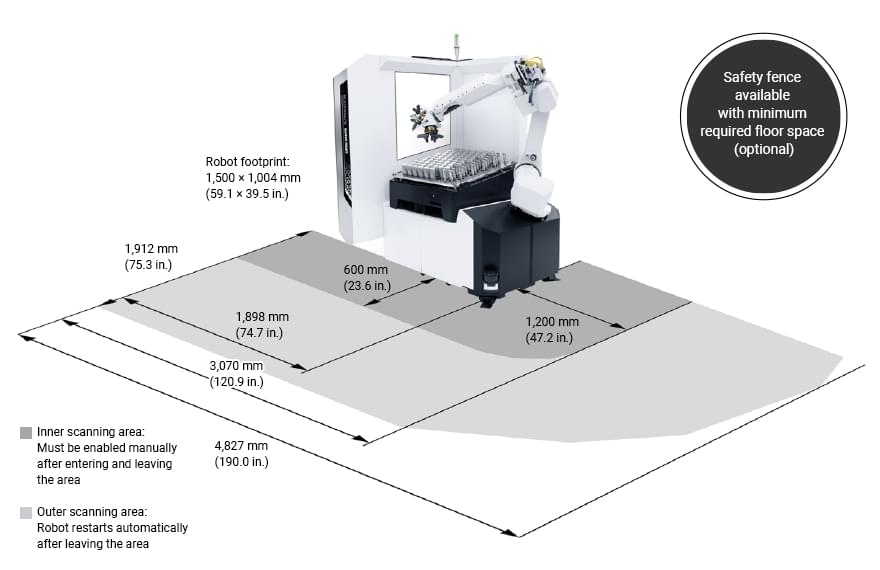

Laser scanner monitoring creates a work environment without safety fences
Automatically reboots after entering external scanning area

Robot hand

The right solution for all situations

2-finger gripper
- Chuck & shaft components
- Internal & external grip
- ø 20 – 170 mm (ø 0.8 - 6.7 in.)
3-finger gripper
- Chuck components
- Internal & external grip
- ø 25 – 175 mm (1.0 - 66.9 in.) <external>
4-finger gripper
- Shaft components
- External grip
- ø 20 – 150 mm (ø 0.8 - 5.9 in.)
Special gripper
- Extended diameters
- Safe connection is possible

Option

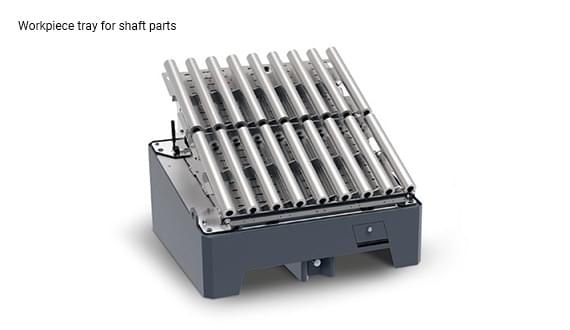

Workpiece tray for shaft parts
Additional workpiece storage
Pressure reduction for gripping sensitive workpieces

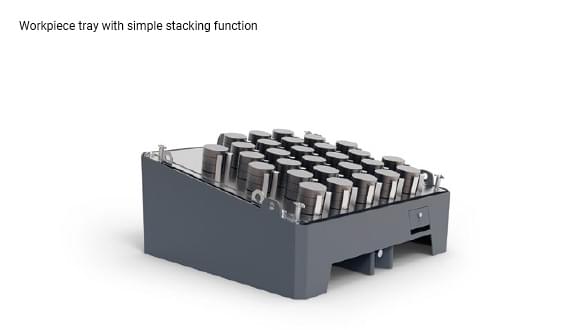

Work trays with workpiece stacking capability
Safety fence
etc.

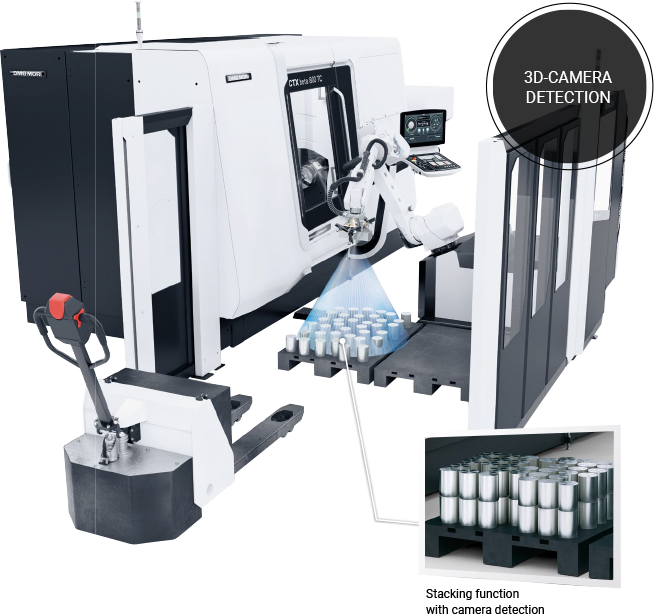

Production assistant with high-precision vision sensor

Robot payload of up to 35 kg (77 lb.)
Cylindrical chuck workpieces from ø 25 to 175 mm (ø 1.0 to 6.9 in.)
High-definition cameras allow for rapid sharing of materials and removing
finished products
No special work storage is required
Reliable 3D camera detection (ideal for multi-job functions)
Camera facilitates and speeds up the setup of new workpieces
Automatic workpiece detection by camera based on specified workpiece
diameter and length

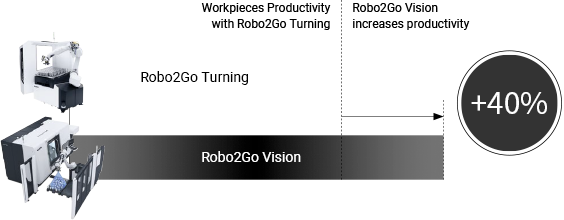

Work storage capacity (40% improvement)
