Robot systemMATRIS Light

Robot system to automate high-mix low-volume production in a short time

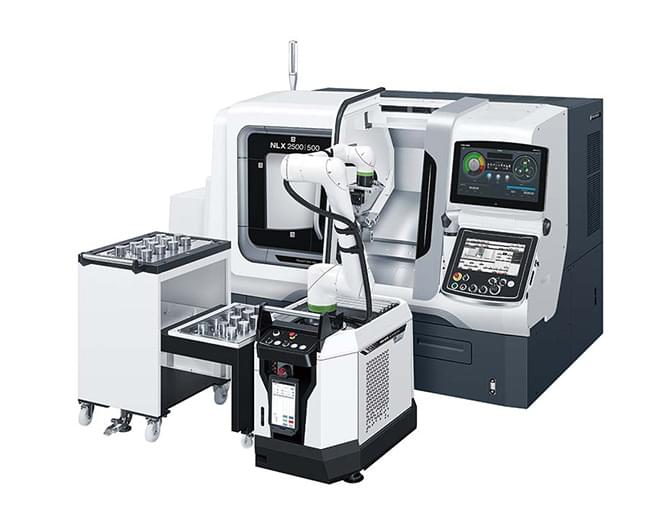

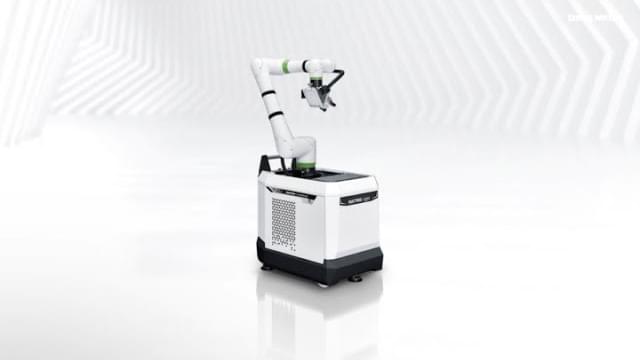

MATRIS Light is a human-collaborative robot system mounted on a hand cart.
MATRIS Light is a freely movable robot system with a human-collaborating robot mounted on a hand truck.
The system can be moved when not in use and used with the necessary equipment when automation is required, thus enabling automation of high-mix low-volume production in a short time and supporting production through automation even in urgent machine operation when the operator is not available.

Video

Highlights

  • A freely movable robot system with a robot arm & workpiece mounted on a cart
  • No major infrastructure changes required for robot installation
  • Easily automated with a setting time of only 5 minutes when needed
  • Robot and workpiece mountable on separate carts to enable setup of next workpiece during operation
  • Easy direct teaching for the robot that requires no special expertise
  • Max. transfer weight: 5 kg (11 lb.)

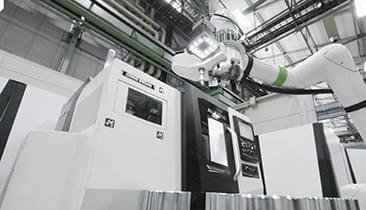

  • Collaborative robot requires no fence installation
  • No extra space required for the automation system: Robot cart size of 600 × 900 mm (23.6 × 35.4 in.) is comparable to the work space of an operator
  • Compatible with a wide range of DMG MORI machines
Handy ways to use MATRIS Light!!
1. Automate when operator is unavailable
2. Connect to a different machine every day

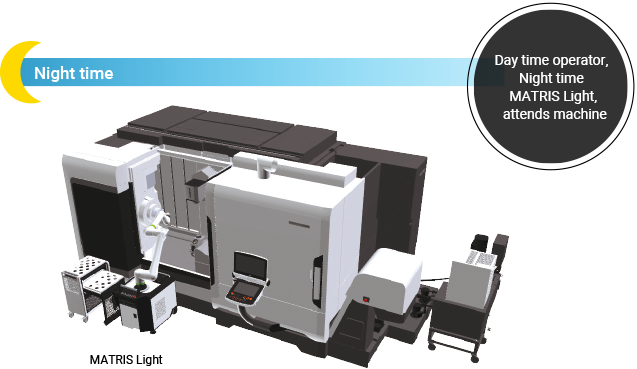

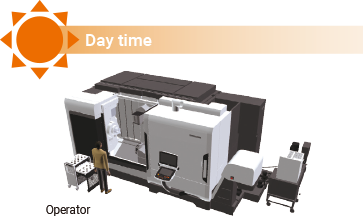

3. Operator in day time,
MATRIS Light in night time

Setup in 5 minutes

3-point Support Structure

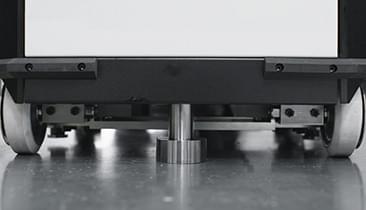

  • Secured by the 3-point support structure
Plug & Play

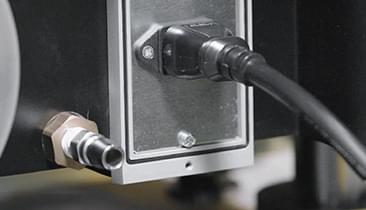

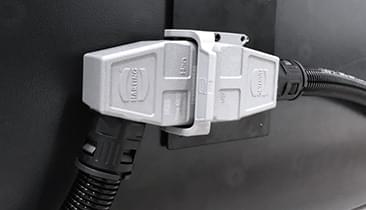

  • Connect the power supply and air blow
    ・Power supply: 100 V to 240 V single-phase
    ・Air: 0.4MPa (58.0 psi) flow rate 50 L/min (13.2 gpm)
  • Ethernet connection
    ・Ethernet cable
High-speed Setup
  • Setup in only 5 minutes
  • Position compensation with tags (option)
Position compensation with tags (option)

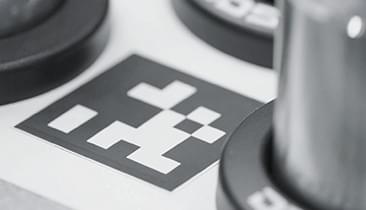

  • Tag

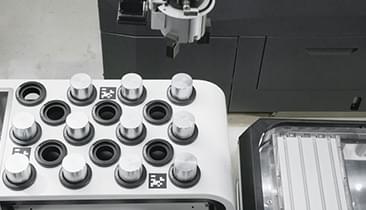

  • Marker reading on the stocker
  • Marker reading on the machine

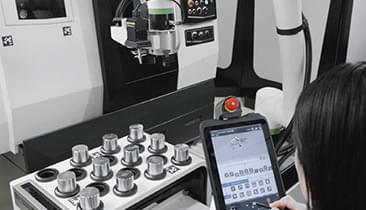

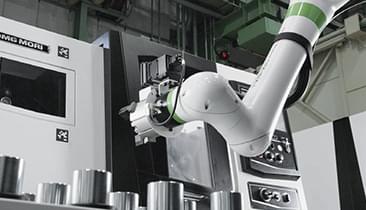

  • Tag function available: reads the markers attached to the machines and adjusts the positions between the robot and the machine
Intuitive Operation

  • Direct teach

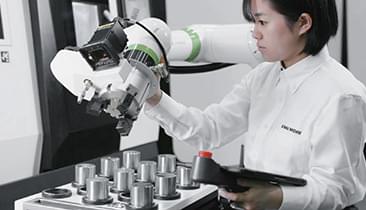

    Hold robot arm by hand, move to teaching
    position (direct teaching mode)

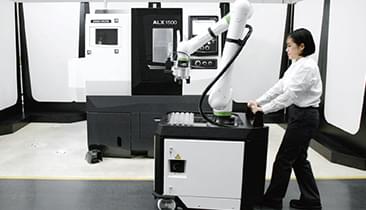

  • Easy to move among machines with the cart type structure

Suitable models

  • 5-axis machine: DMU 50 3rd Generation / DMU 40 eVo / CMX 50 U
  • Multi-Axis Turning Center: NTX 1000 2nd Generation / NTX 2000 2nd Generation / NTX 2500 2nd Generation
  • 4-axis multi-axis machine: NZX 1500 / NZX 2000 / NZX 2500
  • Horizontal machining center: NHX 4000 3rd Generation
  • Vertical Machining Center: CMX 600 V / CMX 800 V / CMX 1100 V / i 30 V
  • Turning Center: NLX 1500 / NLX 2000 / NLX 2500 / ALX 1500 / ALX 2000 / ALX 2500
