Wheel magazine type automation systemPH Whell
Wheel magazine type automation system capable of loading up to
125 workpieces
PH Whell is an automated system in which a wheel type magazine automatically places workpieces on a pallet to a table and cutting machining workpieces.
Integrated with a 5-axis machine, it efficiently processes workpieces in various fields such as aerospace, tool, and die and mold.

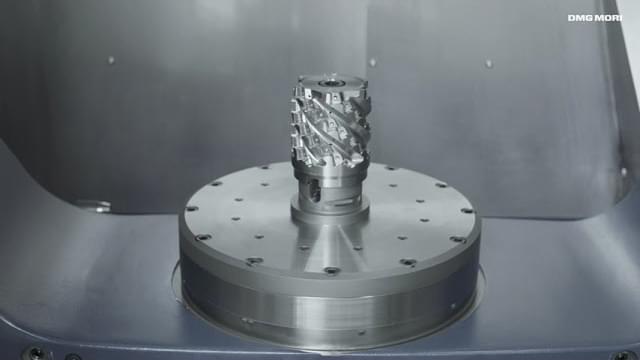

Video
Highlights
- Up to 125 workpieces in a footprint of less than 9 m2 (96.9 ft2)

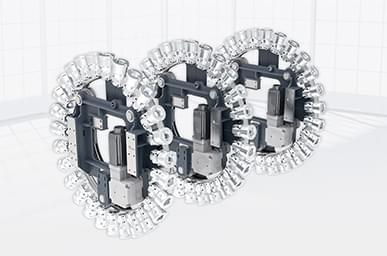

- 5 wheels each holding 25 workpieces
- Capable of loading workpieces with a maximum workpiece size of ø 300 × 400 mm (ø 11.8 × 15.7 in.) and a maximum weight of 50 kg (110 lb.)
- Highly productive workpiece changeover in less than 7 seconds
- Available for pallets with standard interfaces such as HSK 100, Capto C8 and Erowa ITS.
Workpieces up to ø 300 × 400 mm (ø 11.8 × 15.7 in.) and 50 kg (110 lb.)

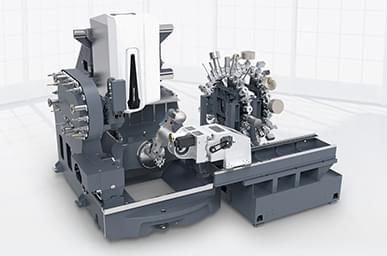

For floor space requirements of less than 9 m2 (96.9 ft2) , up to 125 workpieces with a maximum diameter of 150 mm (5.9 in.) <25 workpieces per wheel>

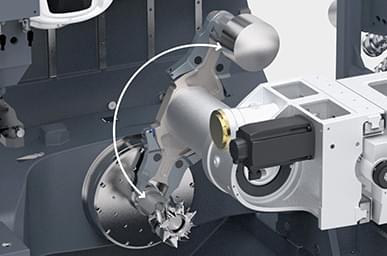

High productivity with workpiece exchange in less than 7 seconds
Suitable models

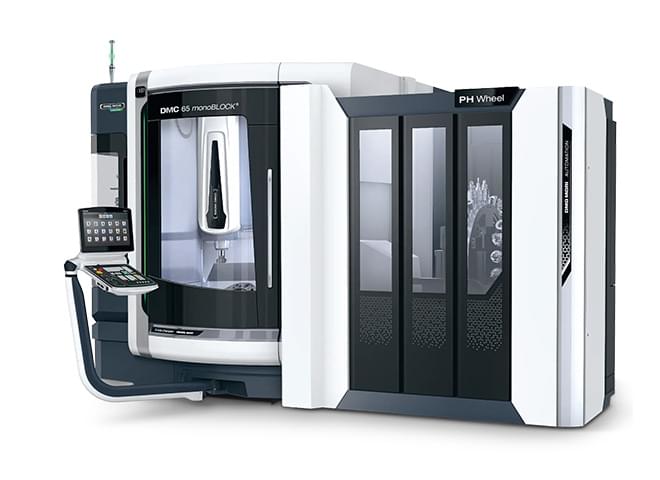

- 5-axis machine: DMU / DMC monoBLOCK
