Pallet handling systemPH 150
Pallet handling system with space-saving and simple structure.

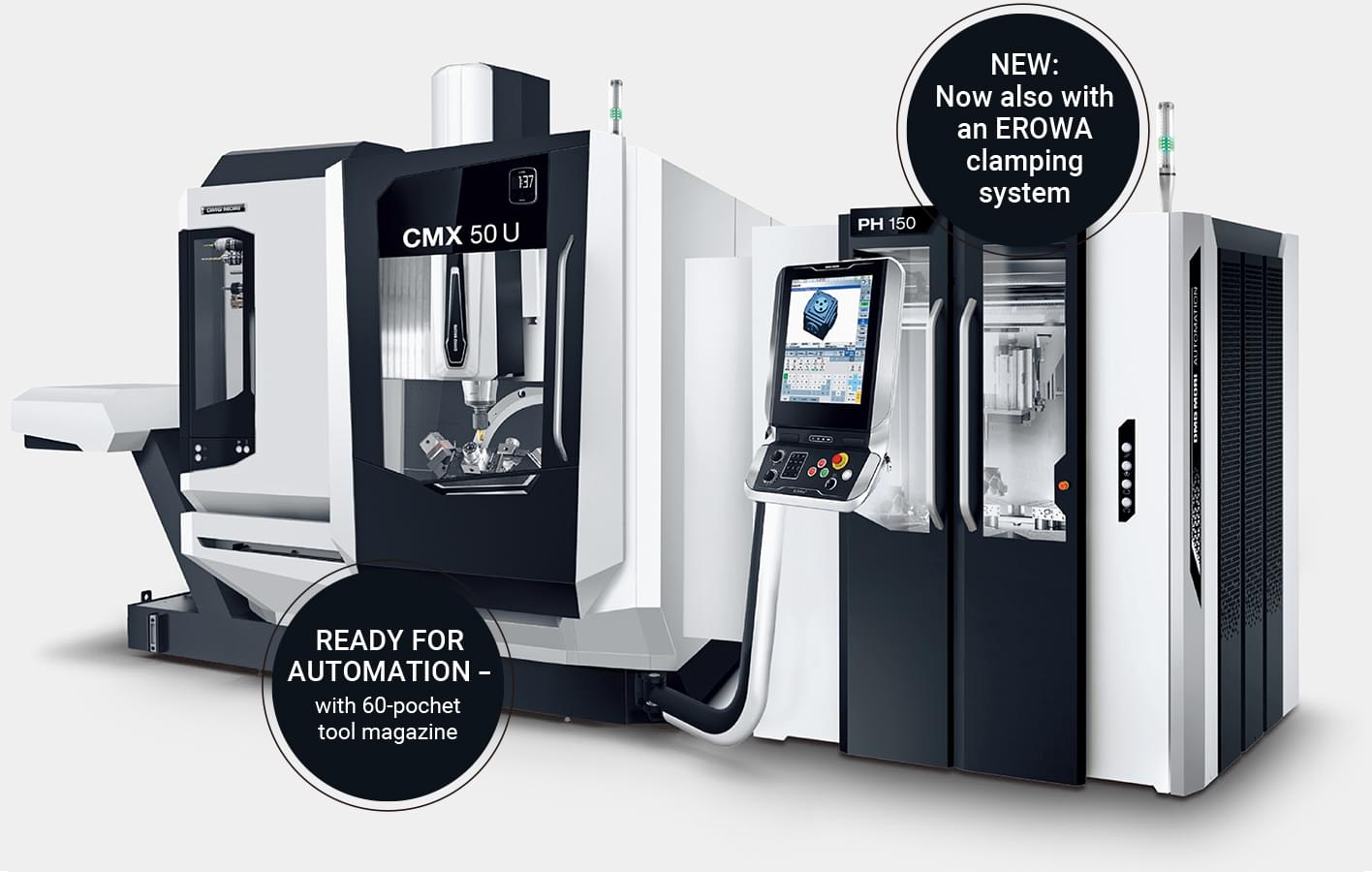

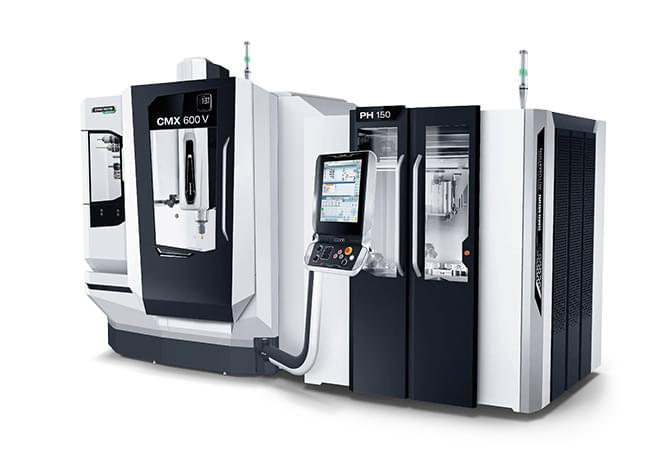

The PH 150 is a space-saving pallet handling system with a simple structure.
This system is recommended for customers who have had difficulty installing automated systems due to factory space limitations or who have been hesitant to install automated systems because of the image that automation = complexity.
PH system + CMX 50 U ¥36,000,000 -
* Reference price (tax excluded). For details, please contact our sales representative or dealers.
Video
Highlights
- Operation directly via the machine control, no additional external control for automation
Max. load capacity 150 kg (330 lb.) <250 kg (550 lb.) as an option> - Clamping for 2 pallet sizes: 10 pallets 320 × 320 mm (12.6 × 12.6 in.) pallets, or 6 pallets* 400 × 400 mm (15.7 × 15.7 in.)
- Less than 40 seconds pallet changing time
- SCHUNK clamping system VERO-S with 32 kN clamping force; up to 112 kN with turbo function
- Available for the CMX V and CMX U, DMC V and a number of other milling machines from DMG MORI
* optional
-

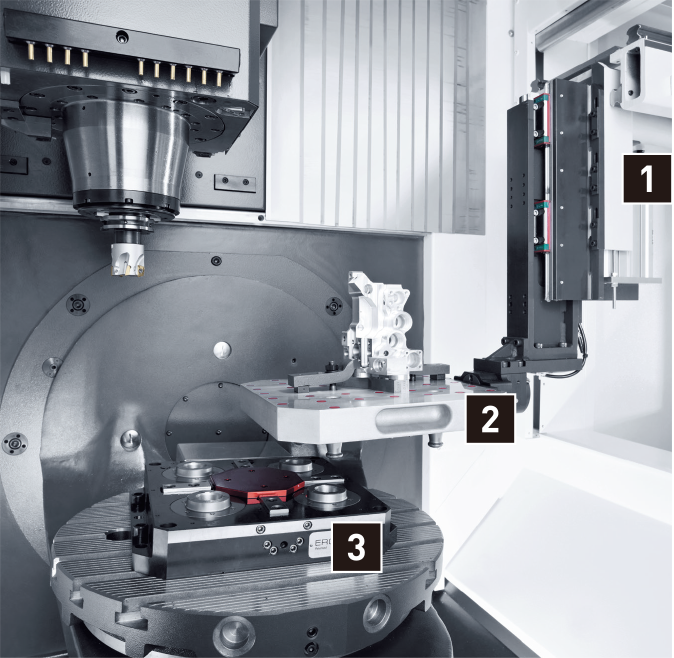

- Linear axis
- Standard: 150 kg (330 lb.), Option: 250 kg (550 lb.)
-
- Pallet
- EROWA UPC pallet: standard 320 × 320 mm (12.6 × 12.6 in.)
<Other sizes: available as standard option or on request>
-
- Zero-point clamping system
- The zero-point clamping system with 4 chucks on the machine table ensures excellent repeatability.

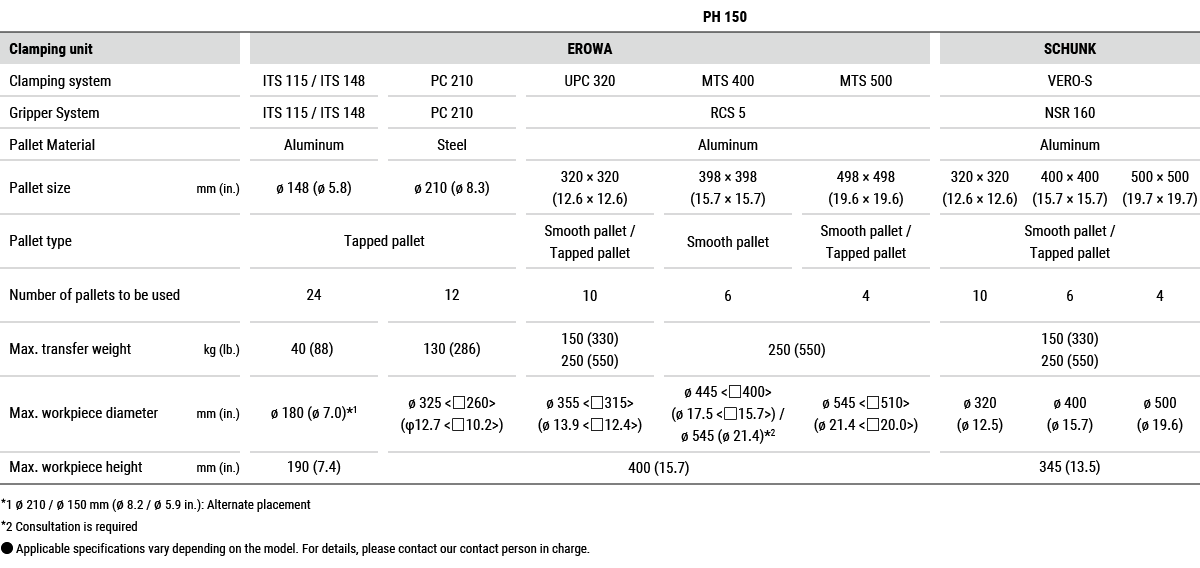

Specifications
Suitable models
- CMX V Series
- CMX U Series
- DMC V Series
- DMU 50 3rd Generation
- DMU 65 / 75 / 85 monoBLOCK
- DMU eVo Series
- DMU 60 / 80 duoBLOCK
- HSC Series
- DMC 60 H linear
- ULTRASONIC 65 / 85 monoBLOCK
- LASERTEC 75 Shape
