DMG MORI｜DMG MORI Automation Solutions

TOP

Compact Pallet Pool SystemCPP SYSTEM

Easy selection of optimal system configuration

This is a package system combining a machining center and 8 types of pallet pool specifications.
Simply by determining the spindle taper, number of pallets, and installation direction of the machine, the optimal system for your production can be implemented.

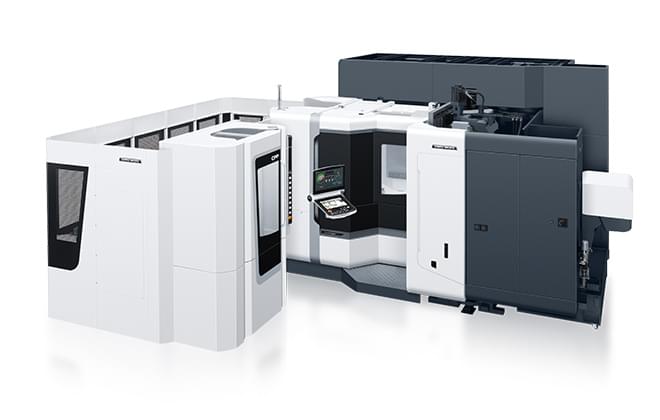

CPP system + NHX 5000 3rd Generation　
¥59,000,000 -

* Reference price (tax excluded). For details, please contact our sales representative or dealers.

Video

Highlights

Easy to order
You can choose your system from a wide range of pre-set options to suit your type of production. This allows you to construct the system quickly.
Space-saving
It allows you to establish an efficient automation system in far less space than other automation systems.
Reduced personnel costs
Since the system allows long-term automatic operation, you can reduce personnel costs, for example by conducting unmanned operation at night.
Reduction in setup time
By placing multiple fixtures on the pallets in advance, no setup is needed when you receive repeat orders.

CPP’s features

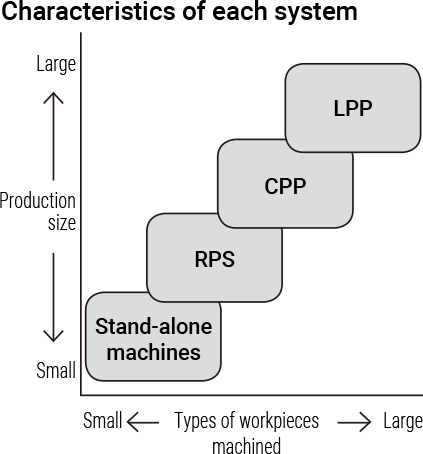

Among all the various systems which are available, the CPP system is the most suitable for multi-item, small to medium-lot production.

RPP: Round Pallet Pool, CPP: Compact Pallet Pool,
LPP: Linear Pallet Pool

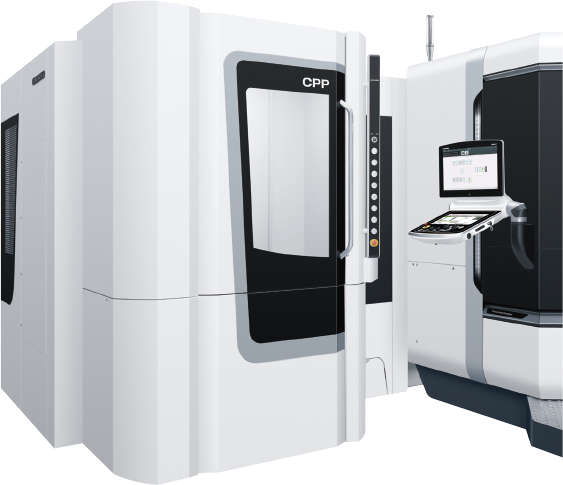

New Design with Beauty and Usability

The design pursues ease of use to reduce the burden of daily work.
The cover design is also aesthetically pleasing, allowing you to experience the joy of operation.

  • Smoother door opening / closing to reduce operators' burden
  • Improved visibility inside the CPP

Operativity

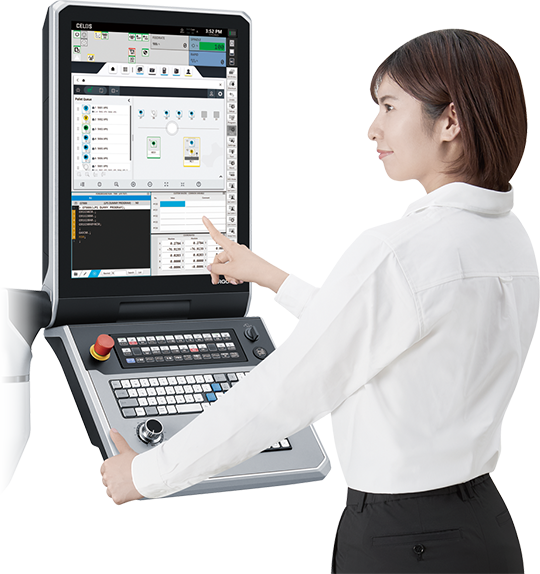

Setups can be performed not only with the conventional handy controller, but with CELOS on the machine.
The use of CELOS also allows for operation and management of both machine and CPP.
CELOS featuring a large touch screen ensures hassle-free setup operations.

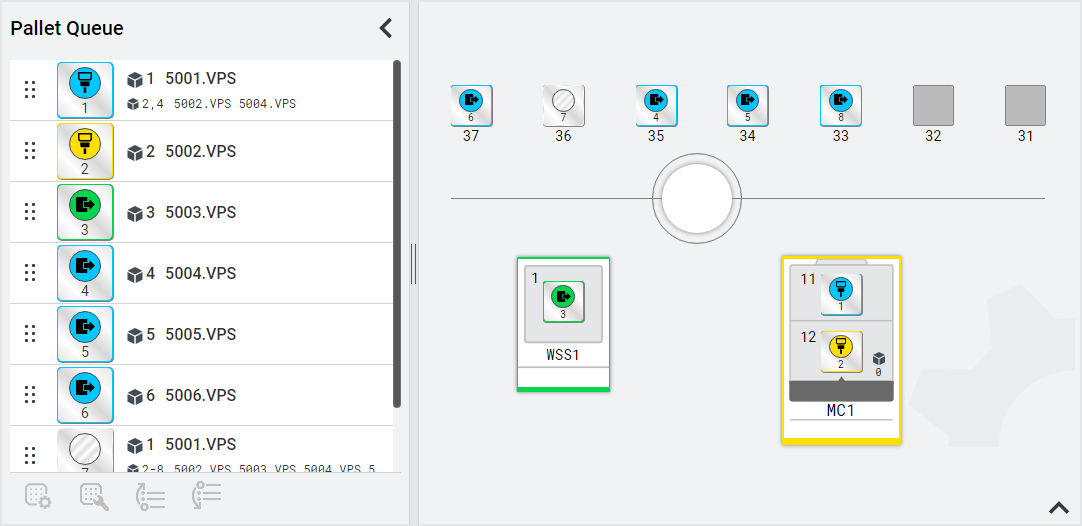

PALLET MANAGER *
  • Intuitive operation,
    just like a smartphone
  • Shorter setup times

* This is a MAPPS V function and is applicable to
the following models:
NHX 4000 2nd Generation,
NHX 5000 2nd Generation,
NHX 5500 and NHX 6300.
This function is not available on NHX 8000 and NHX 10000.
(pallet operation is possible only with the handy controller)

CELOS: Control Efficiency Lead Operation System
MAPPS: Mori Advanced Programming Production System

CELOS: Control Efficiency Lead Operation System
MAPPS: Mori Advanced Programming Production System

Specifications
