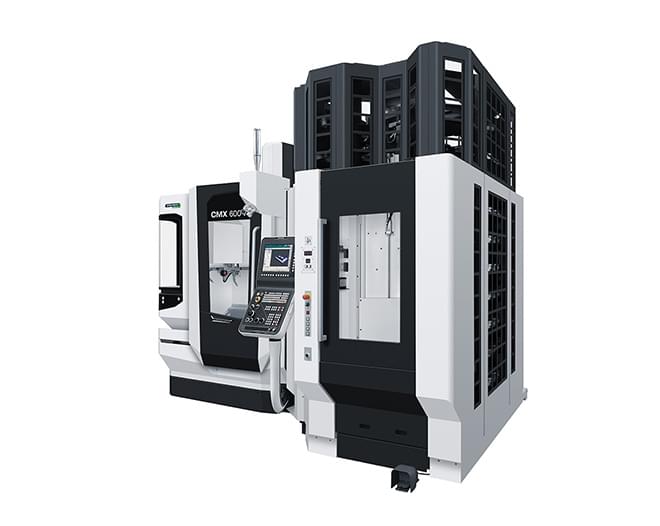

Pallet changer systemAWC
Pallet changer with large storage capacity and small footprint
AWC is an automatic long-term operation is possible to allow for unmanned operation at night. Fixtures can be mounted on several pallets, reducing setup burden for repeat orders.
AWC system + NMV 3000 DCG ¥60,500,000 -
* Reference price (tax excluded). For details, please contact our sales representative or dealers.
Highlights
- Pallet changer with large storage capacity and small footprint
- Pallet handling with up to 114 positions in a footprint of less than 4 m2 (43.1 ft2)
- Handling of workpieces up to ø 350 mm (ø 13.7 in.), 300 mm (11.8 in.) in length, 80 kg (176 lb.)
- Simple programming and setup by means of integration into the machine control

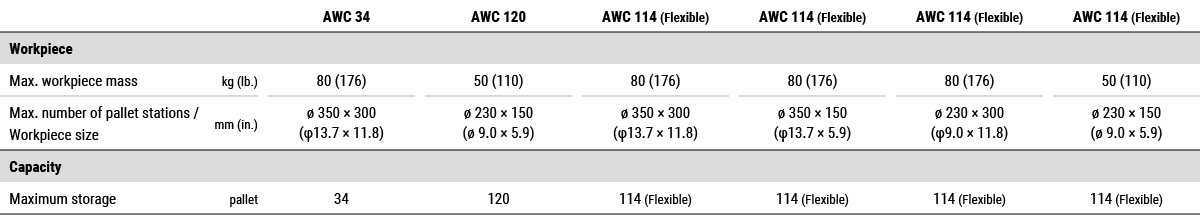

Specifications
Suitable models
- Vertical Machining Center CMX 600 V
- 5-Axis Control Machining Center NMV 3000 DCG
