Pallet storage systemPH Cell 300

Modular pallet storage system for up to 40 pallets

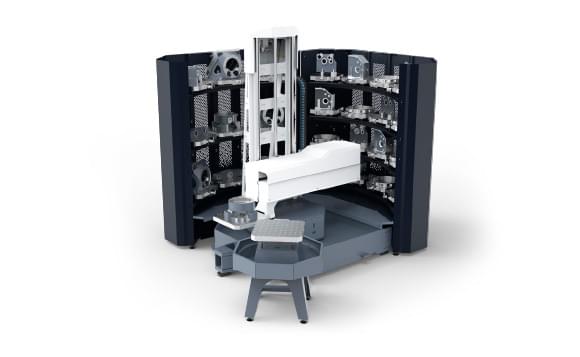

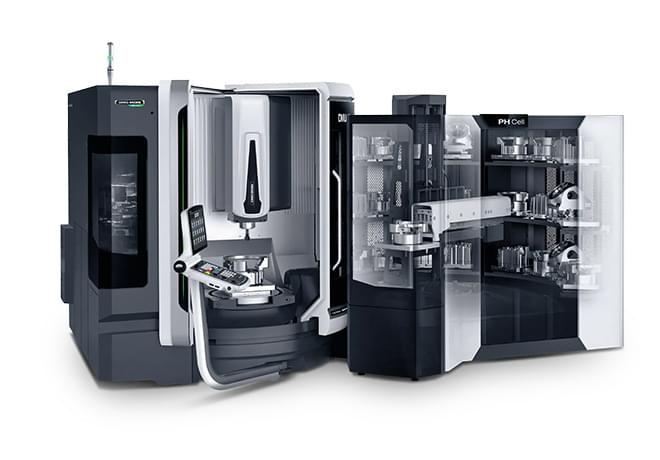

The PH Cell is a modular pallet storage system that can hold up to 40 pallets.
Workpieces can be loaded from the side of the machine, providing excellent accessibility to the machining area.

Video

Highlights

Space-saving installation area of 10.7 m² (115.2 ft²), storing up to 40 pallets

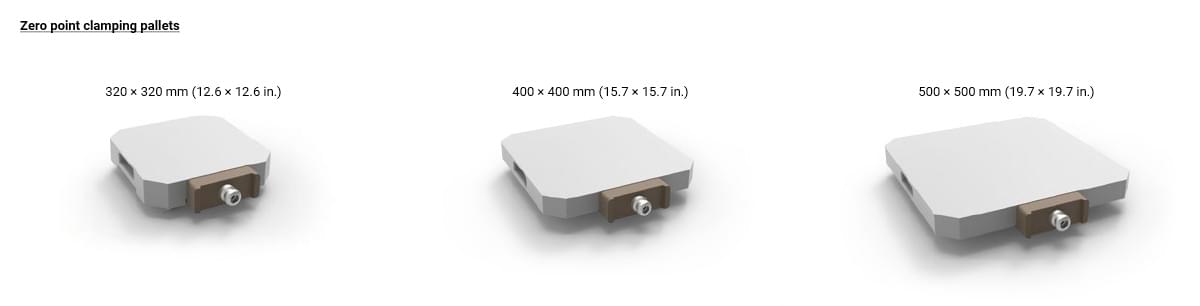

Compatible with pallets of different sizes: 320 × 320 mm (12.6 × 12.6 in.), 400 × 400 mm (15.7 × 15.7 in.), 500 × 500 mm (19.7 × 19.7 in.)

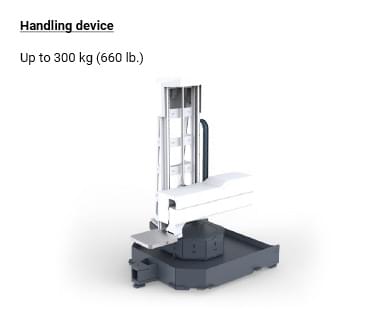

Conveyor capable of transporting workpieces up to 300 kg (660 lb.) <including pallet weight>

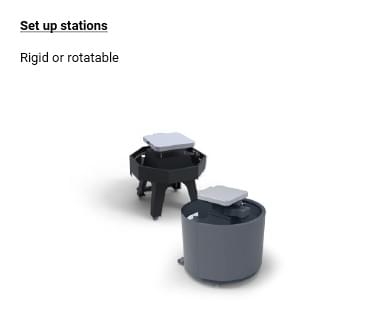

Independent setup station for workpiece set-up during machining
System can be controlled from the control panel of the machine itself

Modular pallet handling system

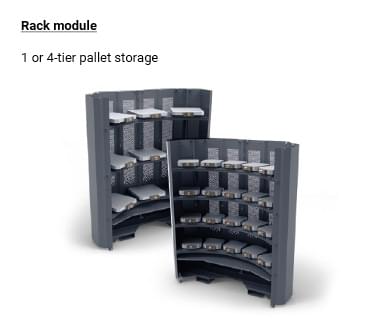

Modular system that allows integration of two rack modules with different rack heights or pallet sizes

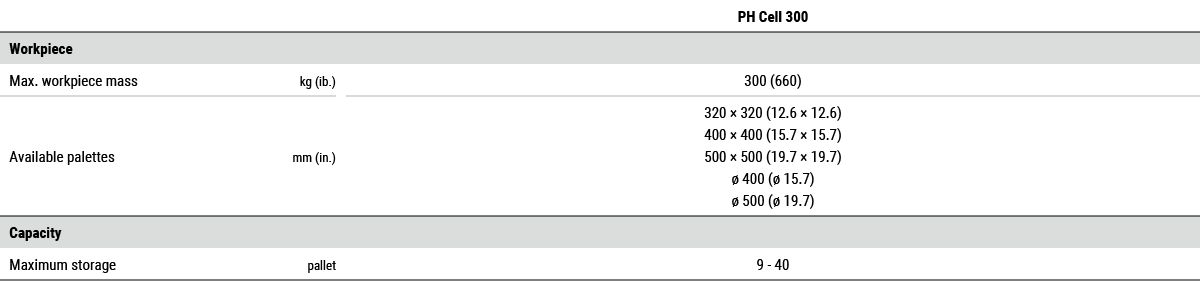

Specifications

Suitable models

DMU 65 / 75 monoBLOCK
DMU 85 / 95 monoBLOCK
DMU 80 / 90 P duoBLOCK
DMU 65 H monoBLOCK
DMU 50 3^rd Generation
DMU 40 / 60 / 80 eVo
DMC 650 / 850 V
CMX 50 / 70 U
DMF 200|8
