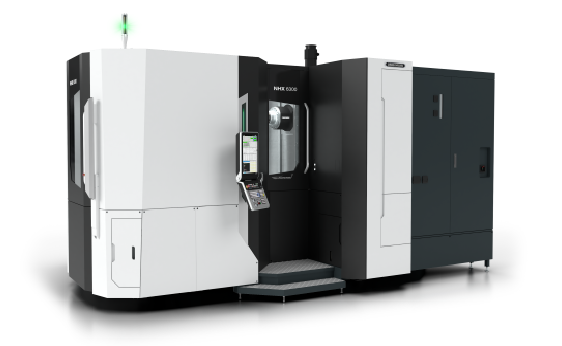

NHX 6300 4^th Generation

NHX 6300 4th Generation

Various Functions in Highly Rigid Structure

The NHX 6300 4^th Generation is a horizontal machining center designed specifically for a No. 50 taper spindle and is ideal for mass production of large workpieces. Equipped with various functions, the machine meets a wide range of machining needs mainly from the automotive and construction machinery fields. The machine employs a thick, robust bed to minimize vibration generated during machining, thereby achieving stable heavy-duty cutting.
The NHX 6300 4^th Generation accommodates workpieces up to φ1,050 mm in diameter and 1,300 mm in height.

Main Machine Specifications

*Scroll to see more.

	Max. workpiece height	Max. workpiece swing diameter	X/Y/Z axis travel	Max. spindle speed	Pallet working surface	Pallet loading capacity
NHX 6300 4^th Generation	1,300 mm	Φ1,050 mm	1,050 mm/900 mm/1,030 mm	12,000 min^-1 (standard) 8,000 min^-1(high torque) 16,000 min^-1 20,000 min^-1 (high speed)	630 mm × 630 mm	1,500 kg

※The actual values may differ from those specified in the catalogue, depending on the optional features and peripheral equipment.
