加工中心：臥式加工中心：NHX

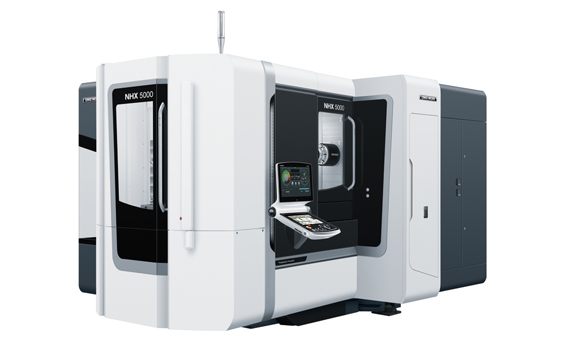

NHX 5000 4^th Generation

NHX 5000 4^th Generation是標準的臥式加工中心，能進行包括汽車產業和其他機械製造產業在內的多樣化領域的高效率持續加工，以及量產加工。此機型配備最新的主軸：speedMASTER，採用高剛度厚機床以進行高速而且穩定的高精密度加工。

*Scroll to see more.

	Max. workpiece height	Max. workpiece swing diameter	X/Y/Z axis travel	Max. spindle speed	Pallet working surface	Pallet loading capacity
NHX 5000 4^th Generation	1,000 mm	Φ800 mm	730 mm/730 mm/880 mm	20,000 min^-1 (standard) 15,000 min^-1 (high torque) 30,000 min^-1 (high speed)	500 mm × 500 mm	500 kg/700 kg

※The actual values may differ from those specified in the catalogue, depending on the optional features and peripheral equipment.
