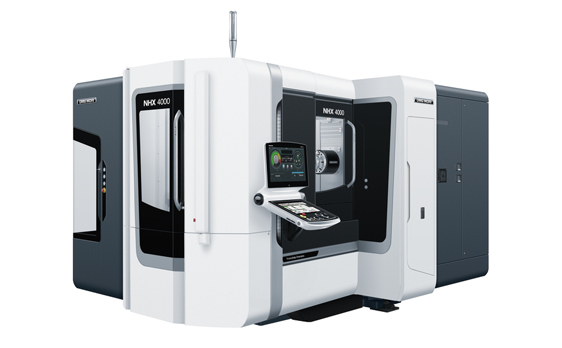

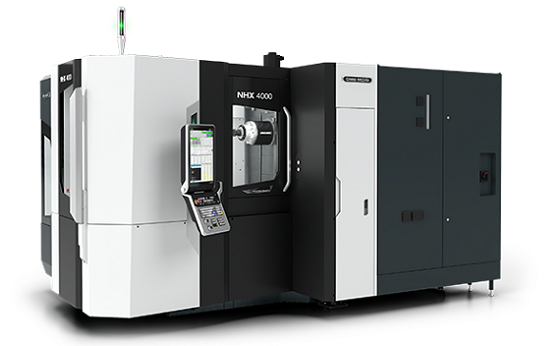

NHX 4000 第4代

超越想像的尖端高速和高精密度加工

NHX 4000第4代是標準的臥式加工中心,能進行汽車和其他機械領域中的高效率持續加工,以及量產加工。兩種機型都配備最新的主軸:speedMASTER,確保以高剛度厚機床進行高速而且穩定的高精密度加工。

Main Machine Specifications

*Scroll to see more.

  Max. workpiece height Max. workpiece swing diameter X/Y/Z axis travel Max. spindle speed Pallet working surface Pallet loading capacity
NHX 4000 4th Generation
900 mm*1 · 880 mm*2 Φ630 mm 560 mm/560 mm/660 mm 20,000 min-1
15,000 min-1 (high torque)
30,000 min-1 (high speed)
400 mm × 400 mm 400 kg

*1 Tap pallet

*2 T-slot pallet

※The actual values may differ from those specified in the catalogue, depending on the optional features and peripheral equipment.
