머시닝 센터：Horizontal Boring & Milling Machines：PBT 150

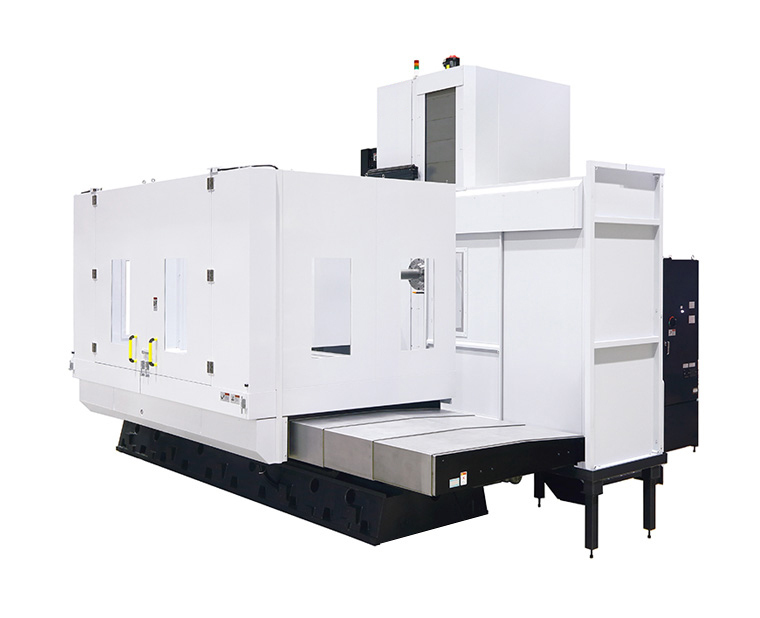

PBT 150
Enhances productivity in deep and multi-face machining with top spindle diameter
PBT 150 | 2200 is the standard model in the 150 mm spindle diameter series. PBT 150 | 2500 features a maximum table load capacity of 2,500 kg and a Z-axis travel of 1,600 mm, both increased compared to the PBT 130 | 2200.
Main Machine Specifications
*Scroll to see more.
| Max. workpiece size | Boring spindle dia. | Max. spindle speed | Working surface | Table maximum loading capacity | Travel | |
|
|
Φ2,650 × W 2,500 × H 2,100 mm | Φ150 mm | 2,500 mm-1 | 1,800 × 2,200 mm | 15,000 kg | X 3,000 / Y 2,000 / Z 1,300 / W 900 mm |
|
|
Φ3,200 × W 3,100 × H 2,400 mm | 2,000 × 2,500 mm | 25,000 kg | X 3,000 / Y 2,300 / Z 1,600 / W 900 mm |
*Please contact our sales representative for more information.
