Permesinan dengan Kecepatan dan Presisi Tinggi serta Mutakhir yang Melampaui Imajinasi

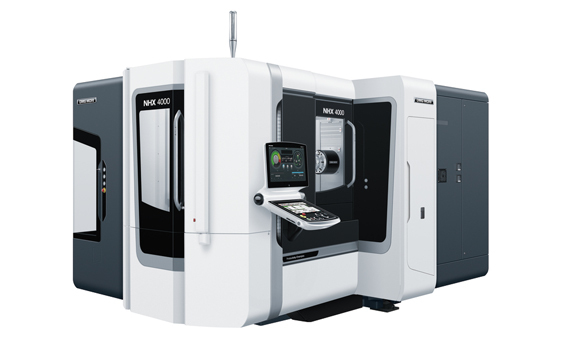

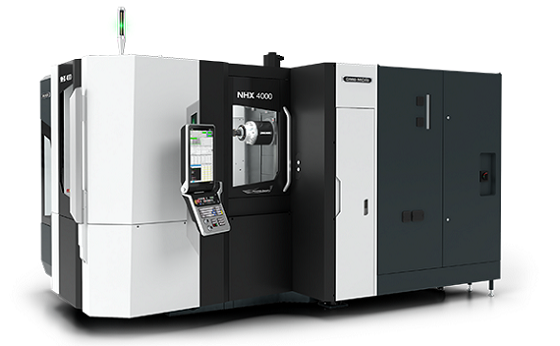

NHX 4000 Generasi ke-4 adalah machining center horizontal standar yang memungkinkan permesinan dengan efisiensi tinggi, berkelanjutan, dan produksi massal di berbagai area seperti otomotif dan bidang mekanis lainnya. Kedua model ini dilengkapi dengan spindle terbaru kami, speedMASTER, yang memastikan permesinan dengan presisi, kecepatan dan kestabilan tingkat tinggi dengan alas yang tebal dan kokoh.

Main Machine Specifications

*Scroll to see more.

  Max. workpiece height Max. workpiece swing diameter X/Y/Z axis travel Max. spindle speed Pallet working surface Pallet loading capacity
NHX 4000 4th Generation
900 mm*1 · 880 mm*2 Φ630 mm 560 mm/560 mm/660 mm 20,000 min-1
15,000 min-1 (high torque)
30,000 min-1 (high speed)
400 mm × 400 mm 400 kg

*1 Tap pallet

*2 T-slot pallet

※The actual values may differ from those specified in the catalogue, depending on the optional features and peripheral equipment.
