High-Feed Cutter「DoFeedTri」

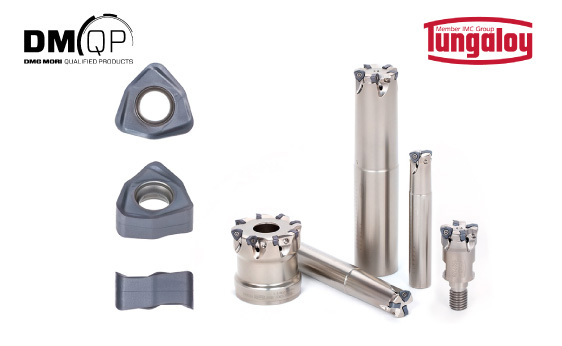

Next-Generation High-Feed Cutter “DoFeedTri”
— Adopting Highly Economical Inserts with Six Cutting Edges
By adopting double-sided inserts with six cutting edges, instead of conventional four-corner inserts, this high-feed cutter achieves 1.5 times greater cost efficiency, delivering outstanding reductions in overall tooling costs.The inserts feature a W-shaped design, which provides a larger contact area during clamping, significantly enhancing insert stability and clamping rigidity.In addition, the cutter employs a smaller lead angle compared to conventional tools, effectively suppressing chatter and ensuring stable machining performance even with long tool overhangs.The extended inner cutting edge also makes this tool ideal for ramping and plunging operations.With a maximum depth of cut of 1 mm, this cutter is the optimal solution for customers seeking further machining cost reductions beyond conventional high-feed tools.
*Please contact our sales team for details.
*Manufacturer: Tungaloy Corporation (Japan)
Features
1. Highly Economical inserts with six cutting edges
- 1.5 to 2 times more cutting edges per insert compared with conventional high-feed milling inserts.
- Particularly effective in cost reduction for machining stainless steels and difficult-to-cut materials, where insert life is typically short.
2. Designed for High Reliability and Stable Machining
- Reverse-positive flank face geometry enhances cutting-edge strength and helps suppress insert chipping.
- A large contact area on the insert seat ensures secure and stable insert retention.
3. Excellent Ramping Performance
- A wide inner cutting edge design independent of the main cutting edge enables a large ramping angle.
- Supports larger ramping angles than conventional tools, significantly improving machining efficiency in helical and plunging operations
4. Expanded Cutter Body Lineup to Meet a Wide Range of Machining Needs
- Cutter diameters available from ø16 mm to ø50 mm, including an expanded range of under-shank types, modular cutters, and bore-type cutters
- Flexible compatibility with a wide range of machine tools and cutting conditions.
- Greater flexibility in tool selection, making process optimization on the shop floor easier.
