"MC-P Series" Machine Vises for 5-Axis Machining

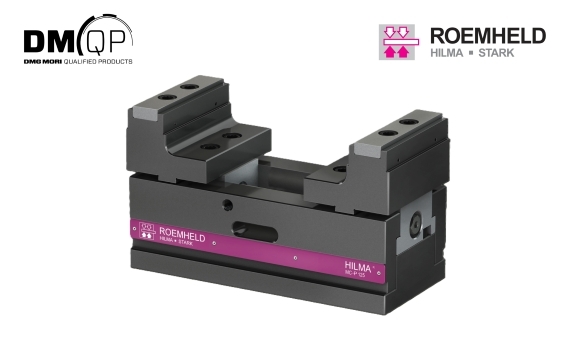

5-axis machine vise

Compact but with a large opening width, these machine vises maximize the performance of 5-axis machines

Developed by ROEMHELD, the experts in machine vise technology, "MC-P Series" manual machine vises are highly rigid and provide excellent clamping force, making them ideal for 5-axis machining. They support everything from heavy to light cutting, and can even firmly clamp difficult materials. They also feature a structure with a small workpiece clamp margin and provide superior spindle accessibility.

*Please contact our sales team for details.
*Manufacturer: Roemheld Halder Co., Ltd. (Germany)

Special DMQP site

Features

1. Impressive rigidity

MC-P Series products are designed with a spindle located in the upper portion of the high-rigidity vise, which minimizes deformation during workpiece clamping. The patented segmented structure provides superior precision and stability, nearly eliminating guide area gaps for firm clamping. All components are made from hardened steel, for enhanced strength and durability, and high rigidity.

2. The optimal design for stable heavy cutting for 5-axis machining

The impressively heavy weight increases rigidity to support even heavy cutting. Products are designed to maintain a consistent height so that tools can easily approach workpieces, even for 5-axis machining, where the table and spindle rotate and tilt.

3. An extensive lineup of accessories

We also carry an extensive lineup of accessories ideal for work in combination with a wide variety of workpieces.

4. An extensive lineup of products

We carry an extensive lineup of MC-P Series products to suit your needs, including single-sided fixed cap, centering, and balanced type products. Multiple MC-P Series products can be operated simultaneously in parallel, allowing for long workpieces to be clamped and machined.

Installation example for DMU 50（⌀630×500 mm)
*The dimensions given in the drawings are the workpiece set surface height from the table

Specifications

Model	Cap width (mm)	Clamping force/torque (kN/Nm)	Opening width (mm)	Total length (mm)	Weight（without caps） (kg)
MC-P60	60	15/60	6～150	170	4.6
MC-P100	100	25/90	18～204	260	17.5
MC-P125	125	40/180	18～215	283	35.0

*Centering and hydraulic drive type products are also available. Please refer to the catalog for detailed specifications.
*We can fabricate special products with modified cap opening widths, strokes, and heights to suit your needs. We can accommodate orders starting from a single piece and can handle special specifications or other requests to suit your project requirements. Please feel free to contact us.
