NHX 5500 4^th Generation

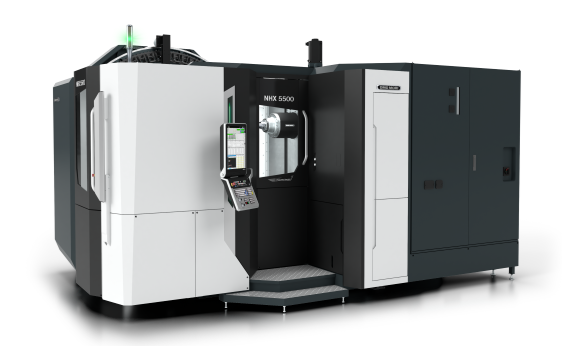

NHX 5500 4th Generation

Various Functions in Highly Rigid Structure

The NHX 5500 4th Generation is a horizontal machining center designed specifically for a No. 50 taper spindle and is ideal for mass production of large workpieces. Equipped with various functions, the machine meets a wide range of machining needs mainly from the automotive and construction machinery fields. The machine employs a thick, robust bed to minimize vibration generated during machining, thereby achieving stable heavy-duty cutting.
The NHX 5500 4th Generation accommodates workpieces up to φ800 mm in diameter and 1,100 mm in height.

Main Machine Specifications

*Scroll to see more.

	Max. workpiece height	Max. workpiece swing diameter	X/Y/Z axis travel	Max. spindle speed	Pallet working surface	Pallet loading capacity
NHX 5500 4^th Generation	1,100 mm^*1	Φ800 mm	800 mm/800 mm/880 mm	12,000 min^-1 (standard) 16,000 min^-1 20,000 min^-1 (high speed)	500 mm × 500 mm	1,000 kg

*1 LPP specification: Choose between 1,000 mm or 1,100 mm

※The actual values may differ from those specified in the catalogue, depending on the optional features and peripheral equipment.
