Gantry-type loader systemGX / GX T
Gantry-type loader system
The GX / GX T series is a modular gantry loader system for one or more machines.
The loader hand can be changed according to the workpiece size.

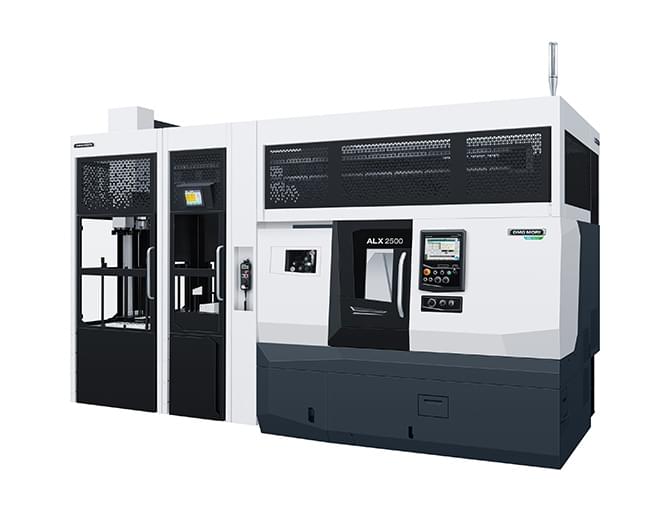

GX 5 (Stocker) + ALX 2500 | 500

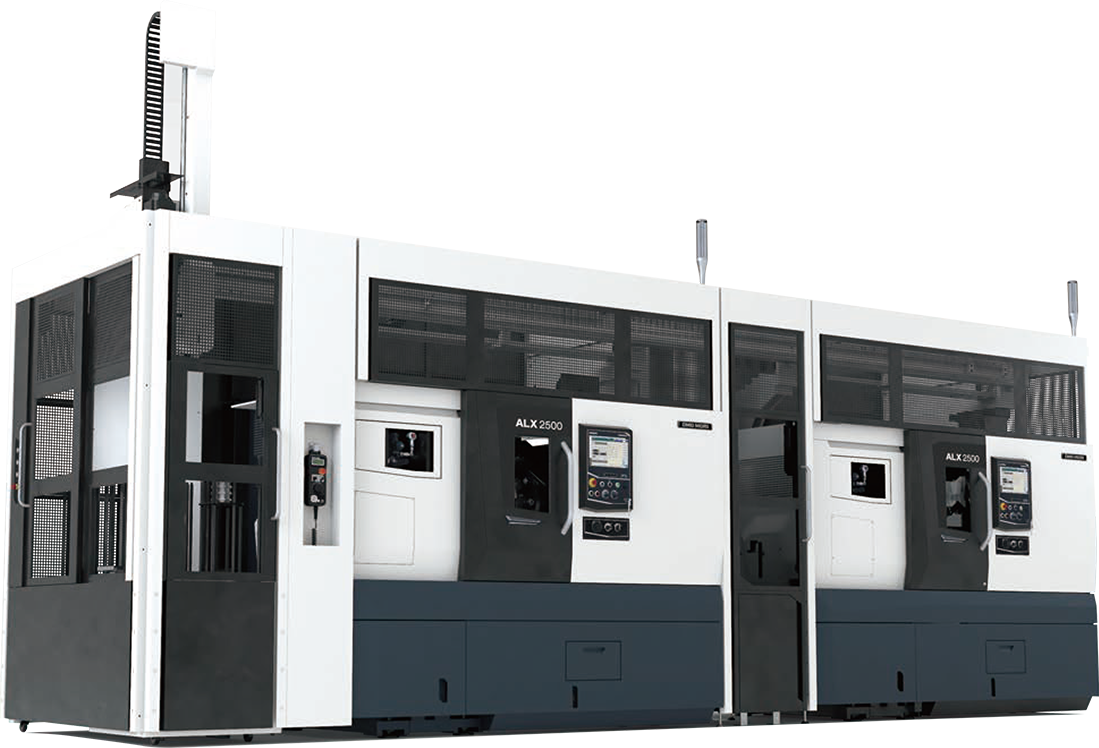

GX 5 (2-machine) + ALX 2500 | 500
Video
Highlights
Various modules are available

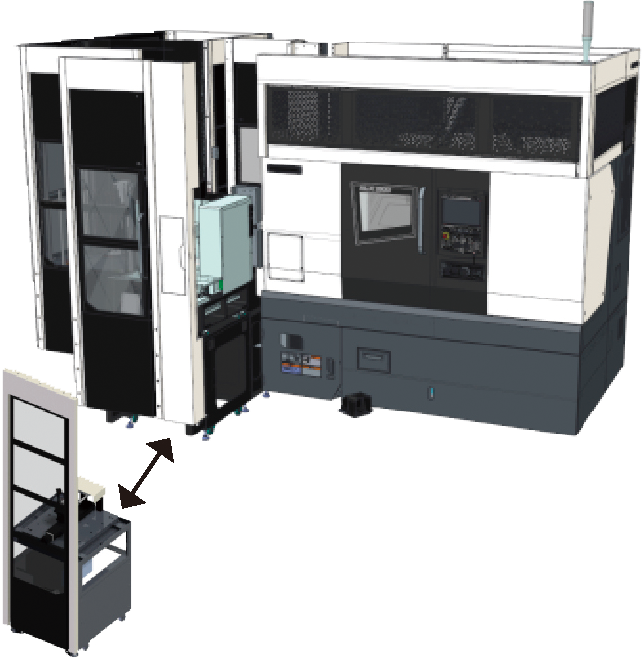

- Standardized modules for flexible system changes after installation
- Modularized peripherals for flexible system extension and peripheral changes
- Modules
- Standardized design allows for
flexible expansion and modification
- Gantry-type loader module system
- The best automation solution for your specific needs
- Various modules are available
Modularized peripherals with various functions

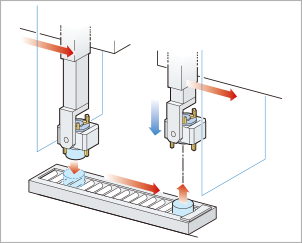

Transfer unit

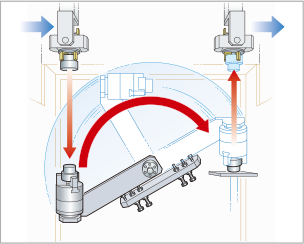

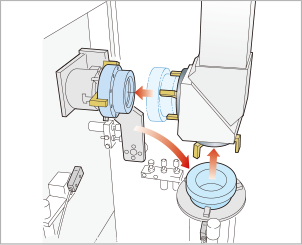

Turnover unit
Transfer turnover unit

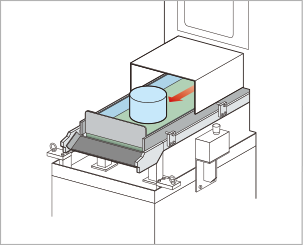

IN / OUT conveyor

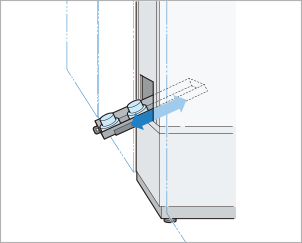

NG chute

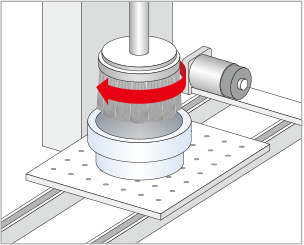

Deburring device

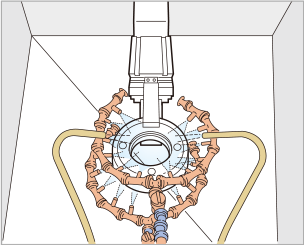

Air blow

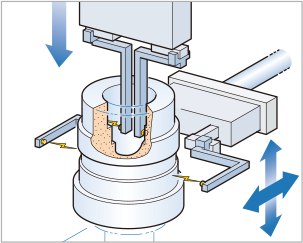

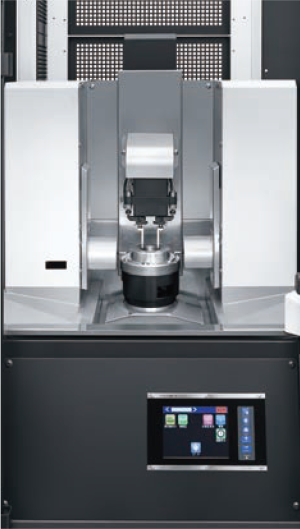

Measuring system
3D measuring instruments
Quality inspection station
Measuring system

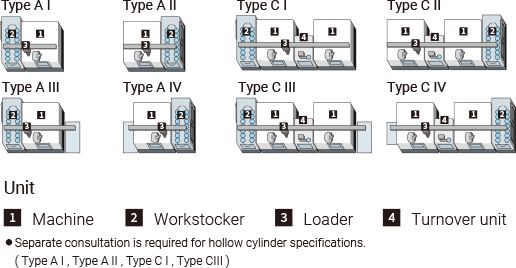

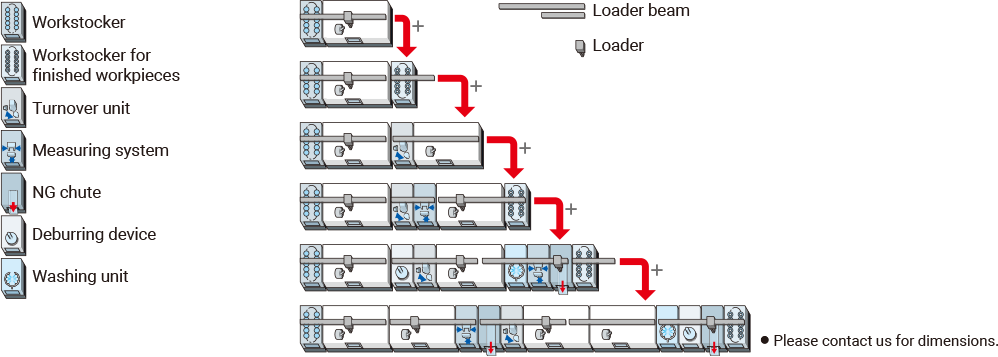

Variations※
※Consultation is required

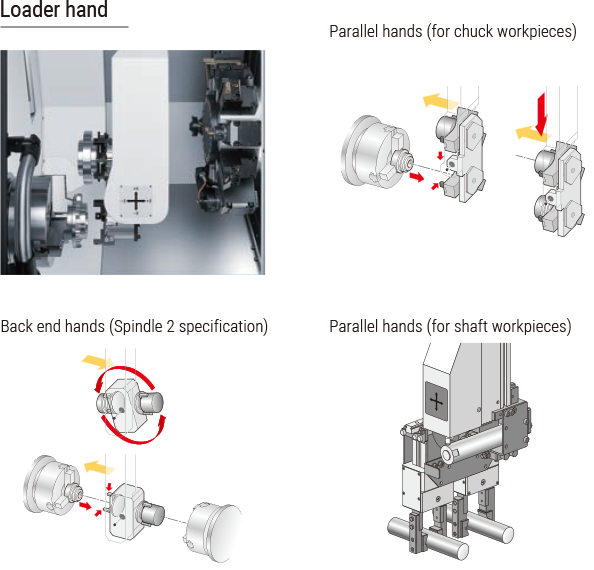

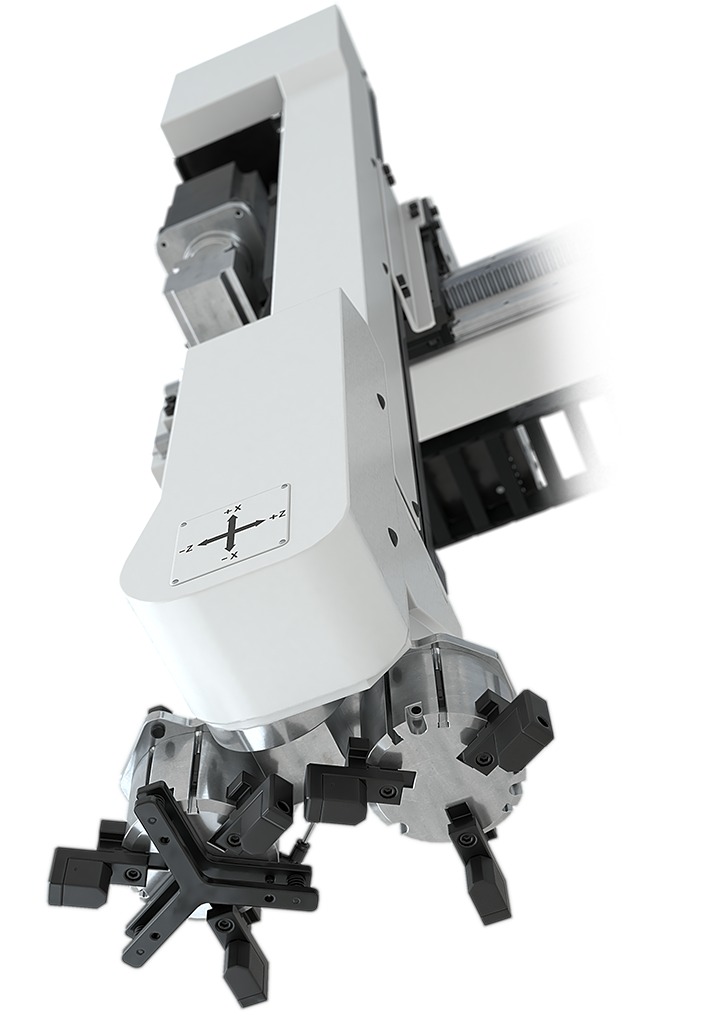

Loader hands
We can provide loader hands that can move at high speeds and accommodate your processing workpieces.

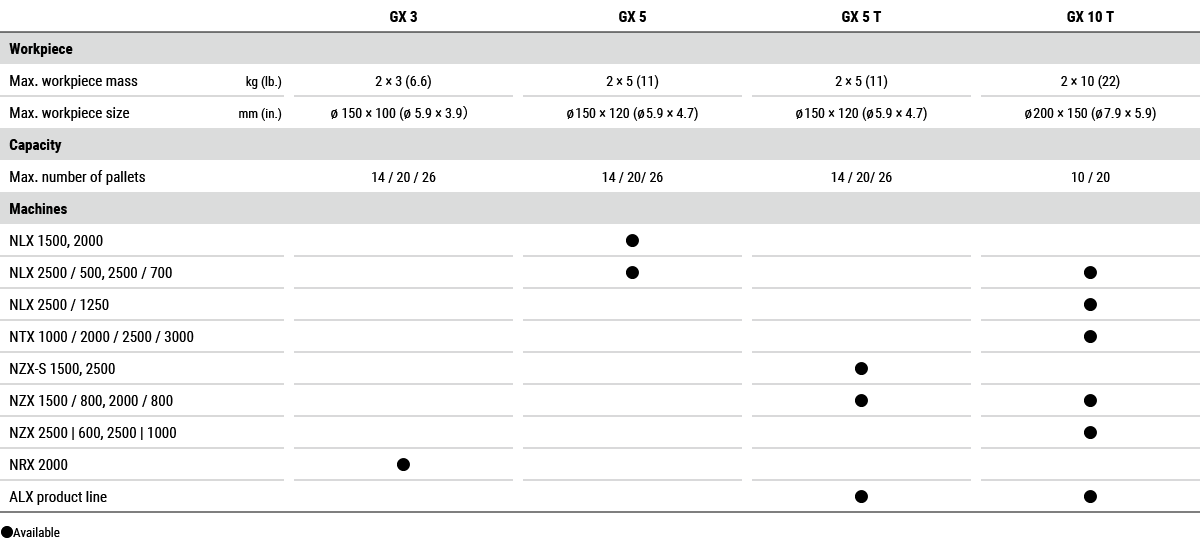

Specifications
