Pallet Handling SystemPH 150

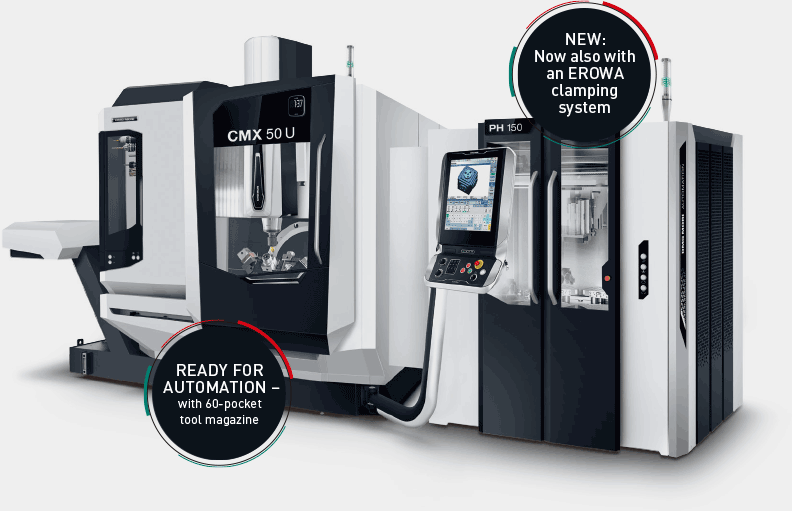

Pallet handling PH 150
Operation directly via the control system

Reference price

* Reference price (tax excluded). For details, please contact our sales representative or dealers.

Technical advantages of PH

  • Operation directly via the machine control, no additional external control for automation

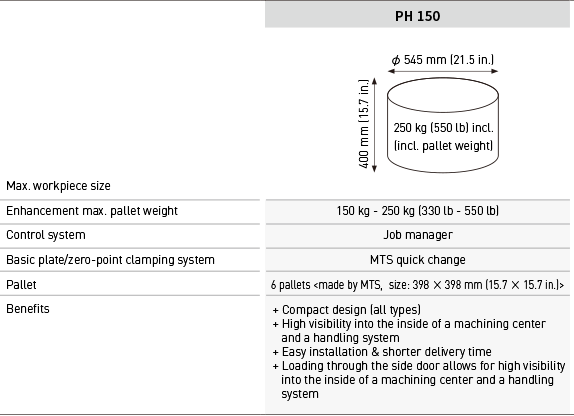

  • Max. load capacity 150 kg (330 lb.) <250 kg (550 lb.) as an option>
  • Clamping for 2 pallet sizes:
    10 pallets 320 × 320 mm (12.6 × 12.6 in.) pallets, or 6 pallets* 400 × 400 mm (15.7 × 15.7 in.)
  • < 40 sec. pallet change time
  • SCHUNK clamping system VERO-S with 32 kN clamping force; up to 112 kN with turbo function
  • Available for the CMX V and CMX U, DMC V and a number of other milling machines from DMG MORI

* optional

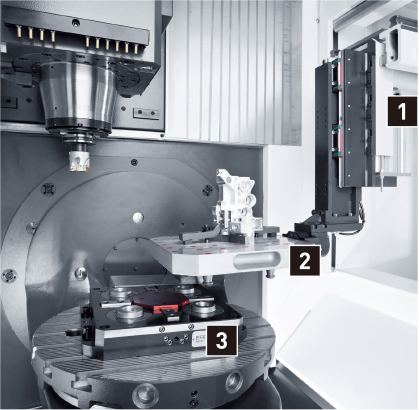

  1. Linear axis
    Standard: 150 kg (330 lb.), Option: 250 kg (550 lb.)
  2. Pallet
    EROWA UPC pallet: standard 320 × 320 mm (12.6 × 12.6 in.)
    <Other sizes: available as standard option or on request>
  3. Zero-point clamping system
    The zero-point clamping system with
    4 chucks on the machine table ensures
    excellent repeatability.
