First-time 5-axis Control Machine Introduction Q&A

Programming looks difficult. Not sure if we can master it

With the conversational programming function and animations that help users intuitively visualize a programming result, the machine can be operated by anyone with ease.
DMG MORI offers a variety of training courses on
5-axis machine operation.

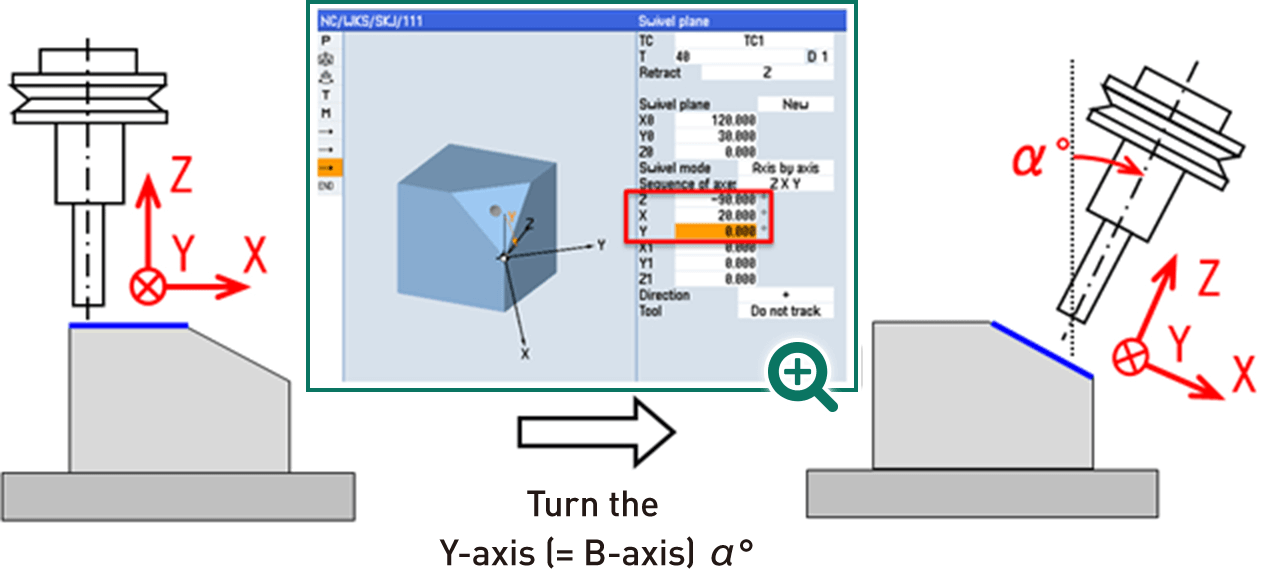

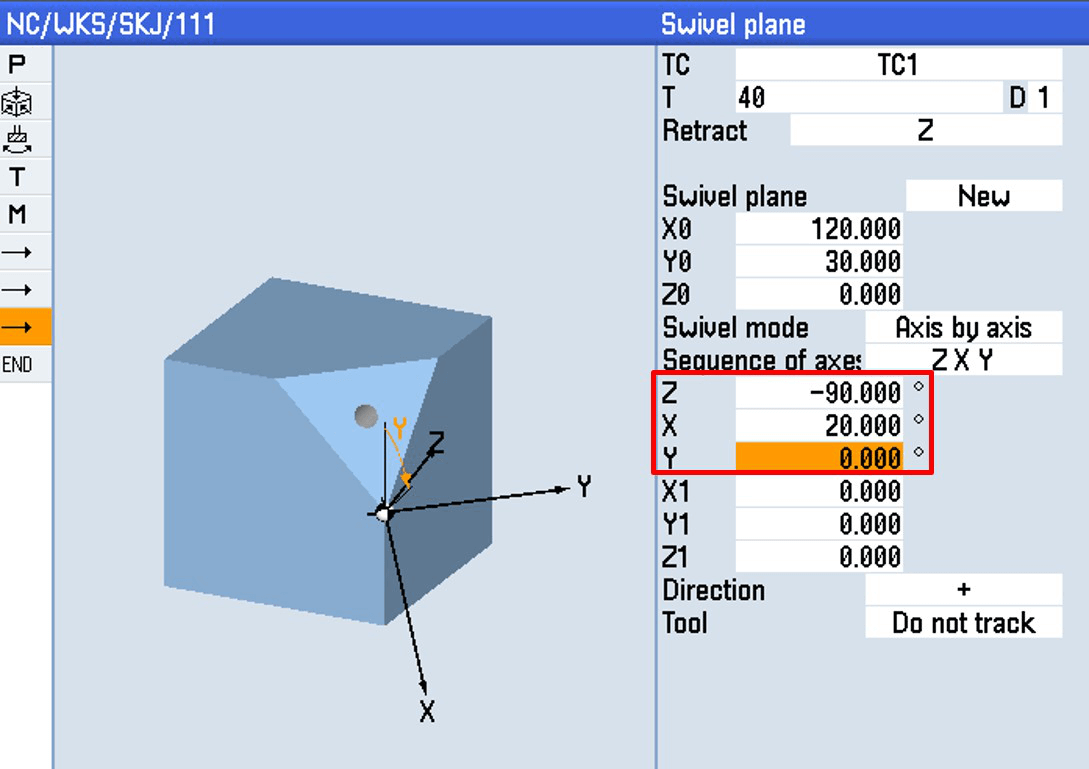

Programming screen example

Specify a rotation angle of the X-, Y-, Z-axis (A-, B-, C-axis) in 5-face / 5-axis positioning.
⇒ Do programming with the tool axis orthogonal to the machining plane.

If you have concerns like the following, just leave it to us!

It seems difficult to program the spindle movement along an inclined plane
  • You can use the conventional X-, Y-, Z-axis by changing coordinates.
  • For indexing 5-axis machining, you can use the conversational programming function just like 3-axis machining.
I can’t visualize how the machine moves from the pre-set values
  • You can simulate and check the movements in animation on the operation panel screen.

Extensive training courses

DMG MORI offers a variety of training courses which include not only classroom lectures but also hands-on training.

For details

Various types of 5-axis machines are on display at our Solution Centers in Iga and Tokyo.
If you would like to experience 5-axis operation at first hand or request test cut, please feel free to contact us.

Contact us for inquiries
