First-time 5-axis Control Machine Introduction Q&A

Should we prepare fixtures / tools for 5-axis machines?

Yes. We recommend preparing vises and holders that do not cause interference to maximize the machine’s performance.

Example (1): Interference between table and spindle

When the spindle approaches to the rotating table from the side, the spindle could interfere with the table

Use a vise tall enough to avoid interference

Example (2): Interference between vise and spindle

When a single-clamping vise is used, the spindle could interfere with the vise when approaching from the side

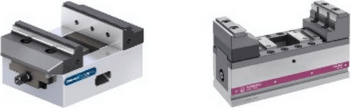

Use a small centering vise to allow the spindle to approach from any direction

DMG MORI offers a wide range of peripherals, including ones made in Europe,
designed for 5-axis control machines. Contact us for more information.
