Press Release
Launch of NHX 4th Generation
Shorter cycle times with next-level speed & performance!
DMG MORI CO., LTD. (hereinafter referred to as “DMG MORI”) has launched the newest generation of horizontal machining centers: NHX 4000 / 5000 4th Generation (“NHX 4th Generation”). With increased spindle output and feed rates, the NHX 4th Generation delivers shorter cycle times, reduced energy consumption through integrated coolant and inverter control, and minimized maintenance workload thanks to advanced chip management for fast, stable, and cost-efficient high-precision machining.
The NHX Series is trusted for high-efficiency mass production in industries requiring high rigidity and accuracy, including aerospace, EV, semiconductors, construction machinery, and mold manufacturing. The NHX 4th Generation builds on this foundation to deliver even greater productivity and machining efficiency.
Customers can reduce cycle times with the speedMASTER spindle at 400 V with up to 50% more output and rapid traverse speeds of 70 m/min. For stable automation, DMG MORI offers dedicated solutions for chip, coolant, and mist management. The zero-sludgeCOOLANT pro*1 system with its high-capacity vertical coolant tank enables continued unmanned operation while minimizing maintenance work.
In addition, the new ERGOline X control panel combines a wide screen touch panel with hardware buttons into an intuitive interface. The integrated CELOS X software supports the latest applications, driving digital transformation (DX) on the shop floor.
The NHX 4th Generation supports sustainable manufacturing by improving overall production efficiency. Energy consumption of peripherals is reduced through integrated coolant pumps, inverter control, and valve optimization. For example, taking the production of 32 control valves per day, customers can increase machine utilization by approx. 10% and reduce power consumption and CO2 emissions by around 30% (saving about 2,078 kilograms of CO2 annually) only by replacing the NHX 5000 3rd Generation with the new NHX 5000 4th Generation.
With the NHX 4th Generation, customers can realize both stable and sustainable production. Additional models including NHX 5500 / 6300 / 8000 4th Generation are currently in development. For more details, please refer to the videos and catalogs available on our official website. *3
- Video : https://www.dmgmori.co.jp/en/movie_library/movie/id=3809
- Catalog : https://www.dmgmori.co.jp/en/download/catalog/detail/id=3446
The NHX 4th Generation will be on display alongside an RPS automation system at “EMO Hannover 2025” from September 22 to 26 at the Hannover Exhibition Center in Germany.
- Main features
1. Up to 15%*4 shorter cycle times compared to previous models
- High-speed/high-torque speedMASTER spindle with 400 V for 50% higher output
Standard spindle with max. 20,000 min-1 rpm
for 50%*4 higher material removal during high-speed aluminum machining - X/Y/Z-axis rapid traverse speed increase from 60 m/min to 70 m/min
Optimized acceleration control to reduce non-cutting time for short distances - CELOS Chatter Control*1 for automatic chatter detection and one-touch parameter changes on NC programs
2. Intuitive interface design
- Rotable ERGOline X H2M interface for improved operability and easy workpiece & spindle access
- Standard 60-tool ring magazine for fast indexing
Optional ring, chain, and rack type magazines for up to 300 tools - Standard magazine operation panel supports all tool setup related operations
3. Flexible automation solutions*1
- Wide range of pallet handling systems
- RPS (Rotary Pallet Storage) system
Workpiece setup in a compact footprint with high pallet density - CPP (Compact Pallet Pool) system
8 different scalable options for easy introduction - LPP (Linear Pallet Pool) system
Fully customizable multi-level pallet racks for maximum productivity
- RPS (Rotary Pallet Storage) system
- MATRIS :
modular robot system for optimal customization - CTS (Central Tool storage):
high-capacity storage for integrated tool & process management
4. Reduced cleaning & maintenance work
- Solutions for chips, coolant, and mist management
- Stainless steel covers to prevent chip accumulation
Dual-axis motorized nozzles*1 for efficient cleaning and AI chip removal*1 to prevent chip accumulation - Chip conveyor capacity x3 for smooth discharge
Standard zero-sludgeCOOLANT for fine sludge filtration
Optional zero-sludgeCOOLANT pro*1 for long periods of continuous operation - Mist collection by zeroFOG*1
- Stainless steel covers to prevent chip accumulation
- Frequent maintenance areas designed for easy operator access
5. 30%*4 less power consumption and CO2 emissions
- Single high-efficiency pump with inverter control for energy savings
- In-house developed transformer & GREENmode for sustainable production
- SBT-certified*5 for CO2 reduction across the whole supply chain
DMG MORI will continue to address customer needs with highly functional and reliable product releases worth your investment.
| Product | NHX 4000 4th Generation, NHX 5000 4th Generation |
|---|---|
| Target industries | Aircraft, Space, EV, Semiconductor, Die & Mold, Semiconductor, Precision machinery, etc. |
*1 Option
*2 Power consumption and CO2 emission data are based on internal research and actual performance.
CO2 emissions are calculated using a base emission factor of 0.451 kg-CO2/kWh. Results may vary depending on production conditions.
*3 Catalogs are available only for web members. Register as a member (free of charge) to view exclusive contents.
*4 Data is based on comparison between NHX 5000 3rd Generation and NHX 5000 4th Generation.
Results may vary depending on machining conditions and external factors.
*5 Science Based Targets: greenhouse gas emission reduction targets set by companies for the next 5 to 15 years,
consistent with the levels required by the Paris Agreement
(which aims to limit the global temperature increase to well below 2°C above pre-industrial levels and 1.5°C below pre-industrial levels).
※DMG MORI CO., LTD., NHX, speedMASTER、ERGOline、CELOS、RPS、MATRIS, AI chip removal, zero-sludge, and zeroFOG, are registered trademarks or trademarks of DMG MORI CO., LTD.

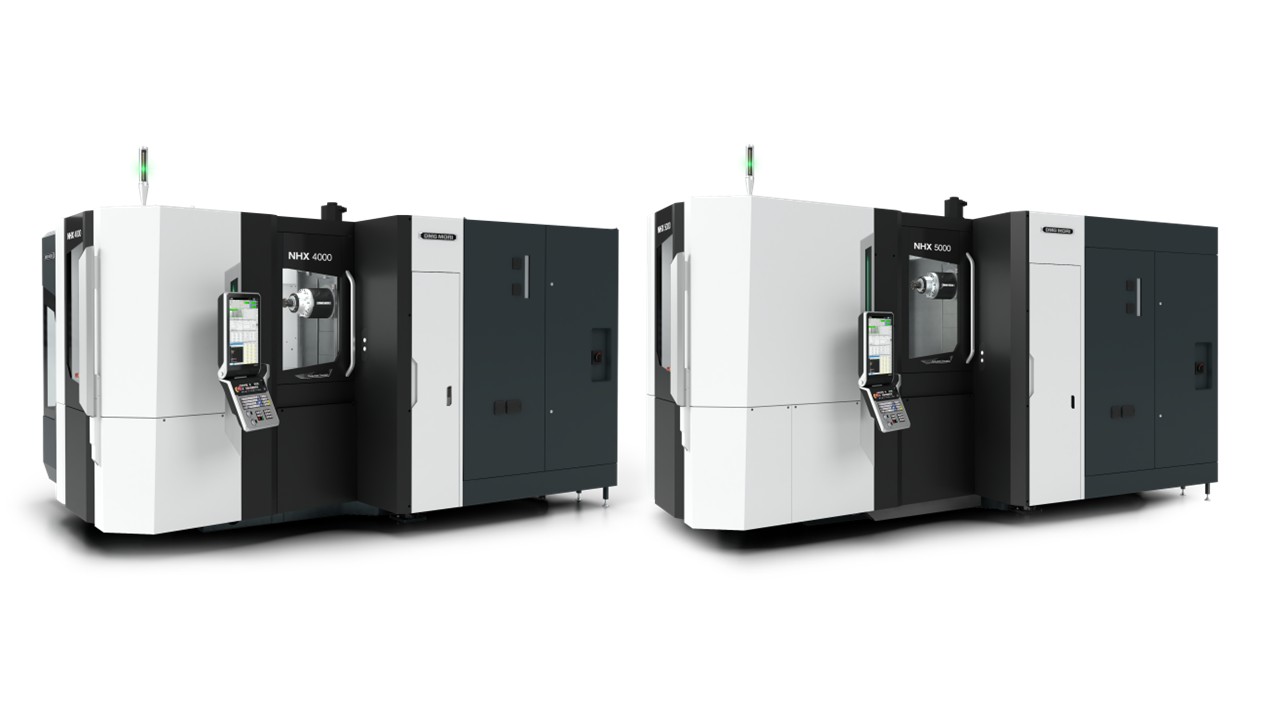

NHX 4000 / 5000 4th Generation

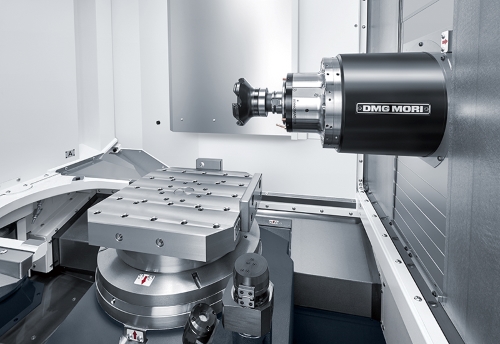

Machining area (interior)

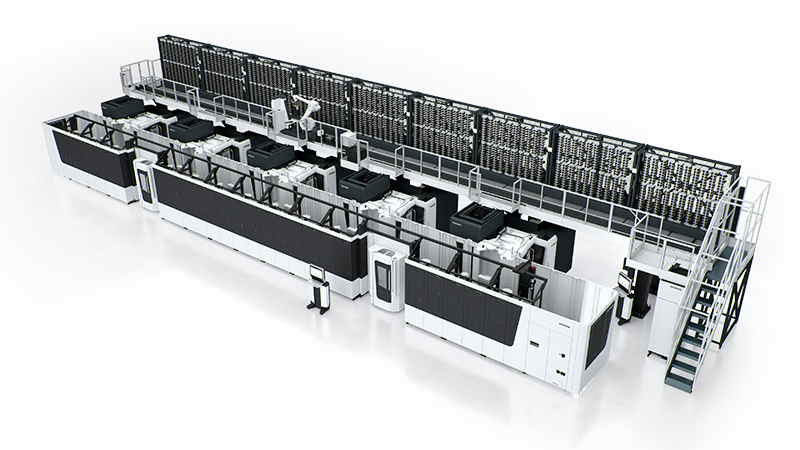

System layout example with LPP & CTS
